About this product

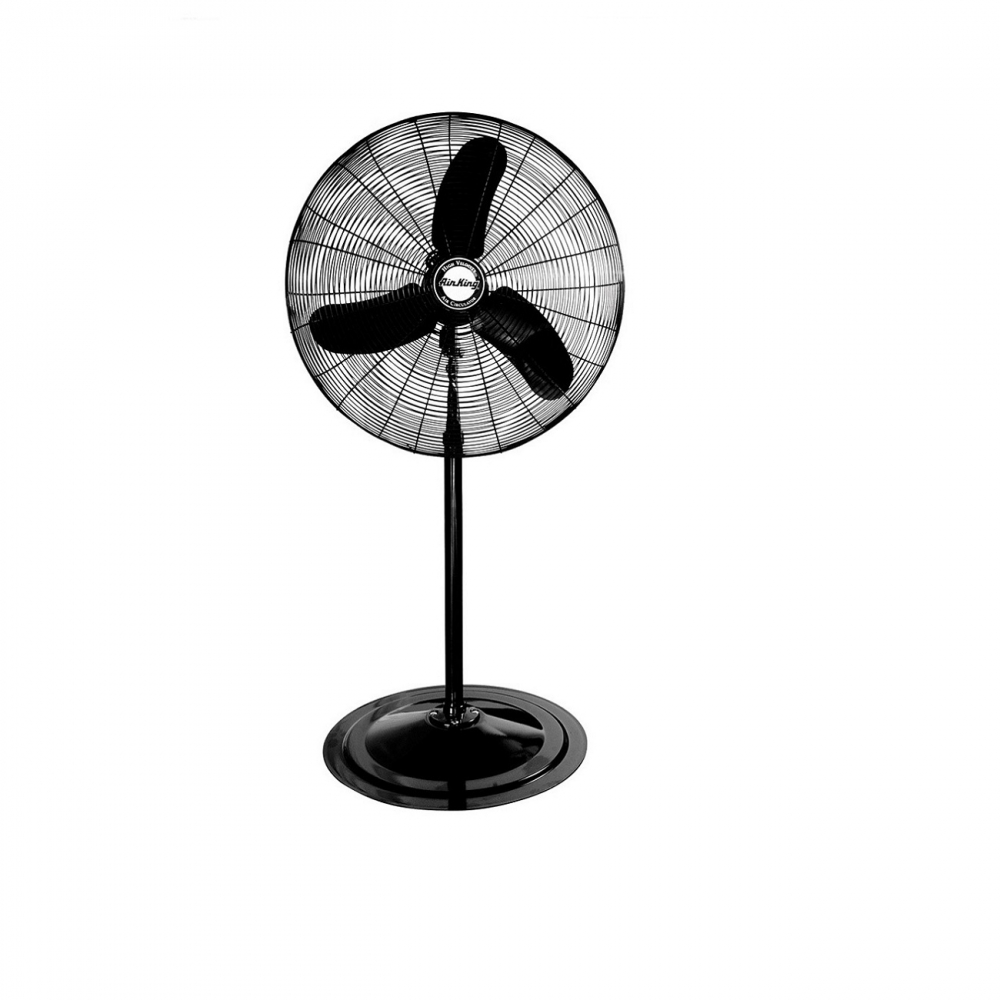

The Air King 1/3 HP industrial grade pedestal fans is great for plants, warehouses, large offices and other industrial spaces that require powerful air circulation. The 9170 is a 30" pedestal fan. The motor is 3-speed, 1/3 HP, 120v, 1 phase, fully enclosed, ball bearing, permanently lubricated with a permanent split capacitor. CFMs are 8780, 7480, 5570 (high, medium, low). RPMs are 1075, 925, 800 (high, medium, low). Amps 2.8, 2.0, 1.7 (high, medium, low). Watts 308, 205, 170 (high, medium, low) rear mounted pull cord switch. A black, 10 ft, 3-conductor SJT type power cord.
Blade, guard and mounts are powder coated steel. ETL and OHSA compliant. Tested in accordance with AMCA standard 230.99. Whether your need is in industrial settings such as manufacturing plants and warehouses or more commercial setting such as offices, schools or hospitals - air king has the perfect solution for you. Powerful motors that last for years and years are what Air King's air circulators have come to been known.
Specifications
- Blade Size: 30"
- CFM (High/Med/Low): 8780 / 7480 / 5570
- RPM (High/Med/Low): 1075 / 925 / 800
- AMPS (High/Med/Low): 2.8 / 2.0 / 1.7
- Watts (High/Med/Low): 308 / 205 / 170
- dB (High/Med/Low) 72 / 70 / 64
- Adjustable Height: 56.5" to 79"
- Oscillation: No
- Controls: Rear mounted rotary switch.
- Power Cord: Black, 10�, 3-conductor, SJT type (models 9420, 9418 - 9').
- Coating: Blade, Guard, and Mounts are Powder coated steel.
- Compliance: ETL, OSHA.
