About this product

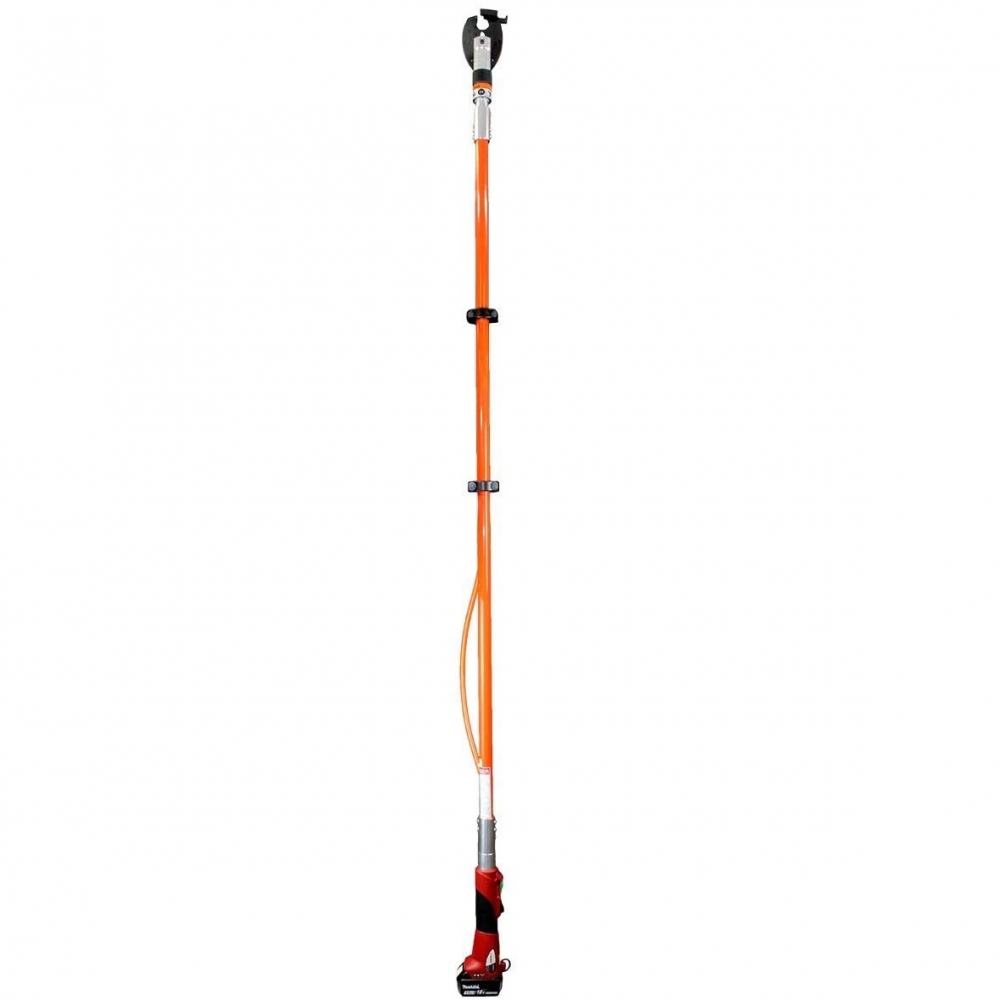

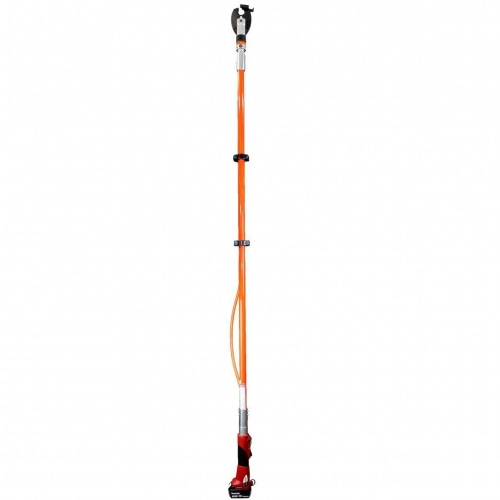

The BURNDY IN-LINE pole cutters are battery actuated hydraulic self contained cable cutters for cutting operations at heights. This series of tools incorporates a hydraulic pump generating considerable cutting force providing a consistent and reliable cut every time.
This PATRIOT tool features interchangeable MD6 series jaw assemblies, capable of both cutting and crimping (using "W" and "X" style dies).
The IN-LINE tools features 350 rotatable jaw assemblies for operation in virtually any position.
The PATRIOT IN-LINE cutter tools are supplied with a durable high strength carry bag, battery charger and two batteries (crimp jaws are sold separately). Each pole cutter is provided with a 5-year limited warranty; 1 year on batteries and charger.
Plenty of output force for reliable cuts on an array of conductor materials and sizes:
CU: 500 kcmil (.93" [24 mm] Max. Insulation Dia.)
AL: 636 kcmil Orchid (.93" [24 mm] Max. Insulation Dia.)
ACSR: 556.5 kcmil Dove 26/7 (.93" [24 mm] Max Dia.)
GUY St (EHS): 3/8" Dia. [10 mm]
CopperWeld: 3/8" Dia. [10 mm] (approx. #4 AWG depending on stranding)
AlumaWeld: 3/8" Dia. [10 mm] (approx. #4 AWG depending on stranding)
Rebar: 3/8" Dia. [10 mm]
Interchangeable scissor action jaws allow to crimp or cut with the same tool. The ram holds position when the trigger is released, allowing the operator to check alignment prior to the cut. A large hand grip area allows easier operation with gloves and the ergonomically balanced tool design helps to lessen the operator fatigue.
Actuated blade guide, automatically closes for easy positioning on cable and allows large diameter cable to be cut. Each tool comes with one set of blades to cut all specified materials.
Specifications
- Length: 72"
- Materials Cut: CU, AL, ACSR, GUY St (EHS), CopperWeld, AlumaWeld, Rebar
