About this product

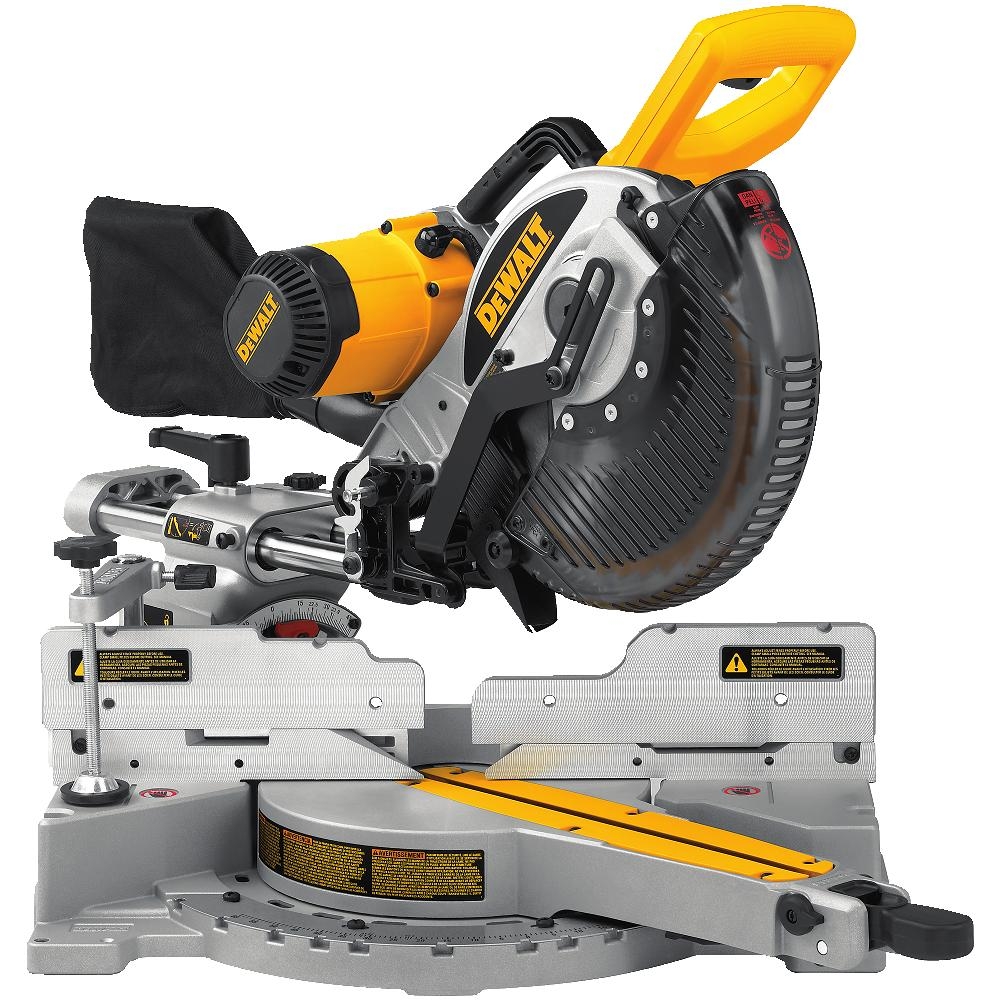

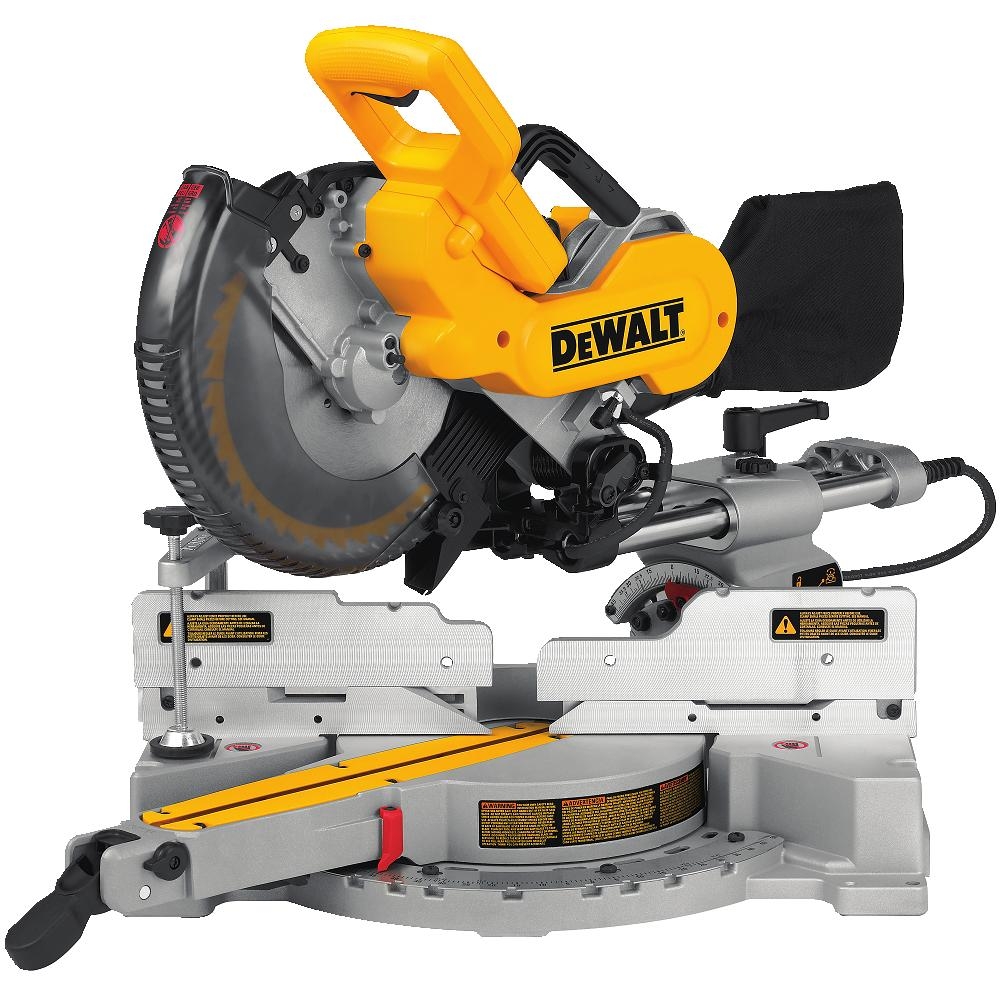

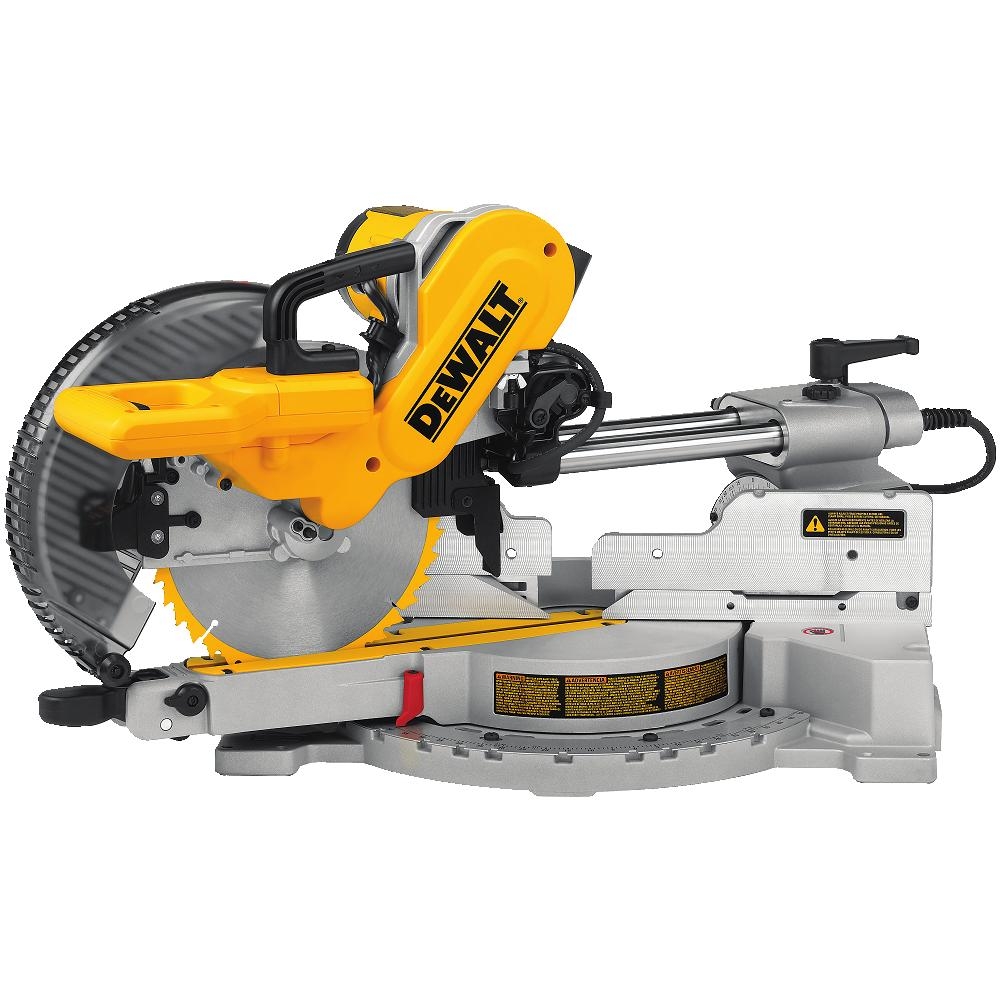

The DW717 10" Double-Bevel Sliding Compound Miter Saw has an exclusive bevel detent system with seven positive stops to deliver fast accurate repeatable cuts. Best in class cross cut capacity 12" at 45° angle using back fence design. Features stainless steel miter detent plate and cam miter lock for accuracy, durability and easy adjustments.
Exclusive bevel detent system with 7 positive stops delivers fast accurate repeatable cuts
Adjustable stainless steel miter detent plate with 11 positive stops improves productivity & ensures cutting accuracy
Optimizes cutting accuracy
Machined-base fence support maintains fence perpendicularity with blade for cutting accuracy
Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable, and compact saw
Exclusive cross-cut stop positions cutting head for maximum vertical cut capacity
Best in class cross cut-capacity 12" at 45-degree angle using back-fence design
Vertical cut capacity nested crown up to 6-1/4"
Tall sliding fence supports up to 6-inch base molding to the left of blade and up to 3-1/2" to the right of the blade
Miter capacity left 60° and right 52° for greater versatility
Bevels 0-48° for increased cut capacity
Cam lock miter handle provides fast locking action of miter table
Horizontal handle improved ergonomics provides increased comfort
Laser compatible, designed for use with the DWS7085 LED worklight or DW7187 DEWALT® adjustable miter saw laser system
Lightweight (51 lbs.) with built-in carrying handle for easy portability
Specifications
- 45° Bevel Cut Capacity (dimensional lumber): 2x12" (2x14" with back fence)
- 45° Miter Cut Capacity (Max Height): 4"
- 45° Miter Cut Capacity (Max Width): 8"
- 90° Cross-Cut Capacity (dimensional lumber): 2x12" (2x14" with back fence)
- 90° Cross-Cut Capacity (Max Width): 14" Special Set Up
- Amps: 15
- Arbor Size: 5/8"
- Blade Diameter: 10"
- Horizontal Capacity: Baseboard Lying Flat 14"
- Horizontal Capacity: Crown Molding Lying Flat 10-3/4"
- No Load Speed: 4,000 rpm
- Power Tool Type: Corded
- Tool Weight: 51 lbs
- Vertical Capacity: Baseboard Against Fence 6" Left - 3-1/2" Right
- Vertical Capacity: Crown Molding Vertically Nested 6-1/4"
