About this product

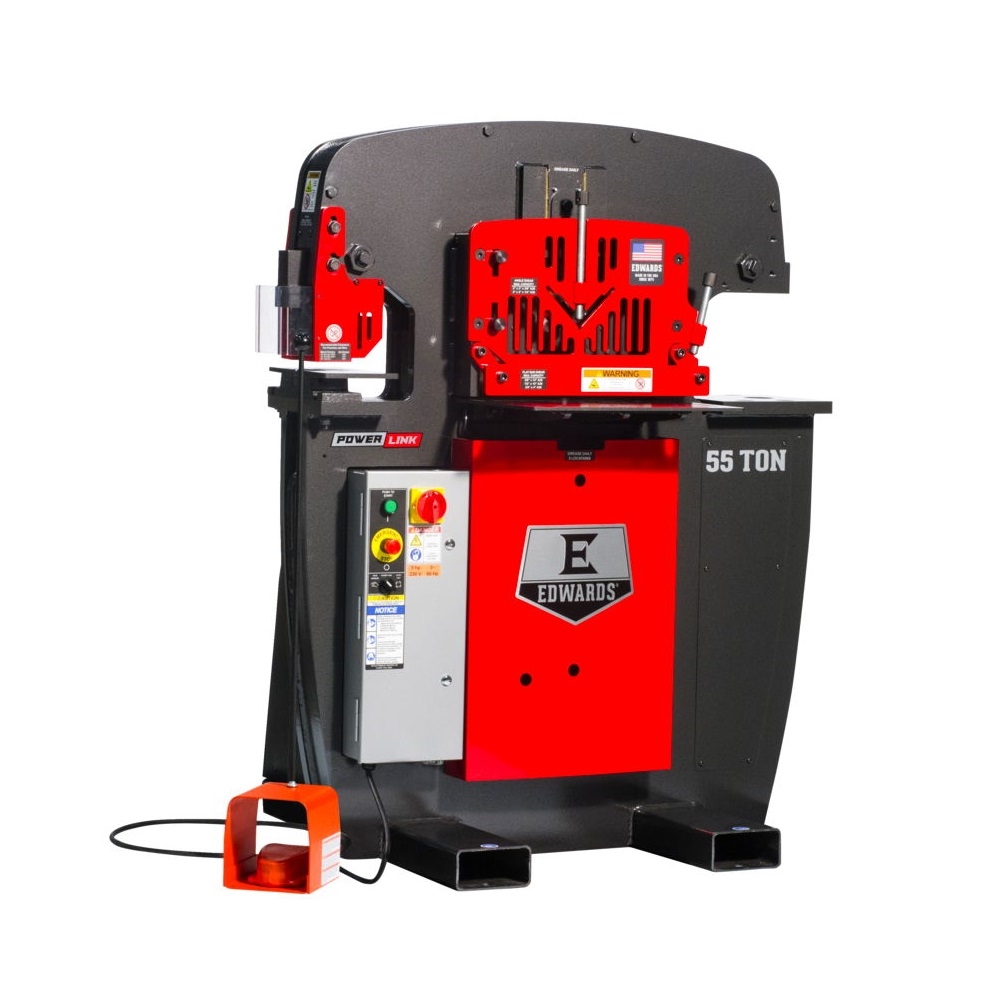

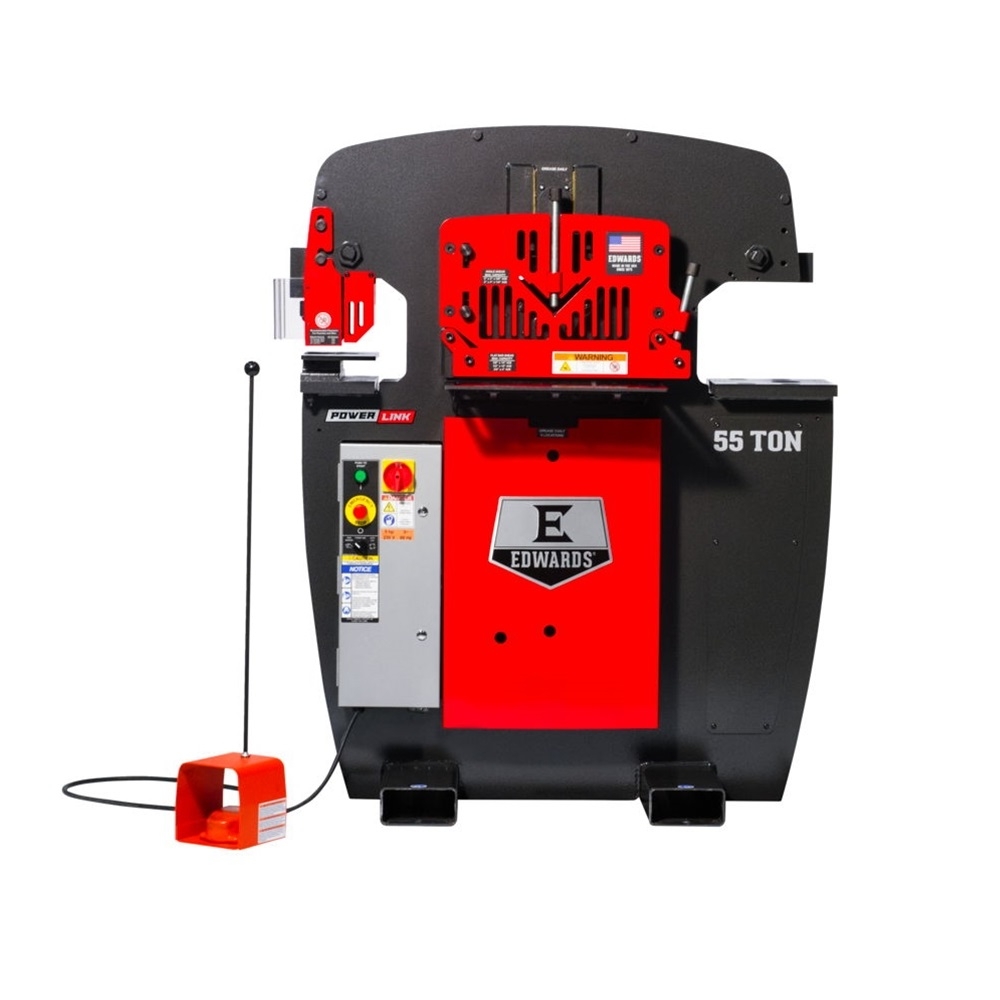

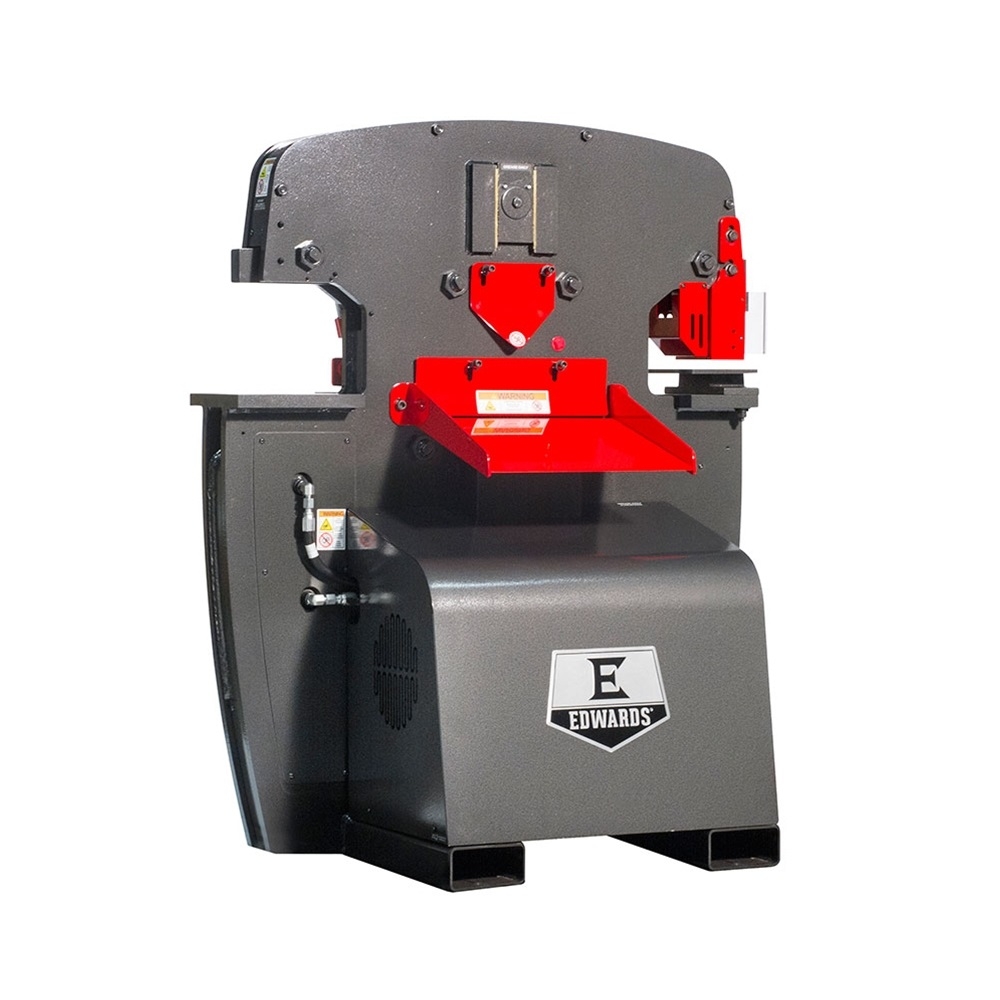

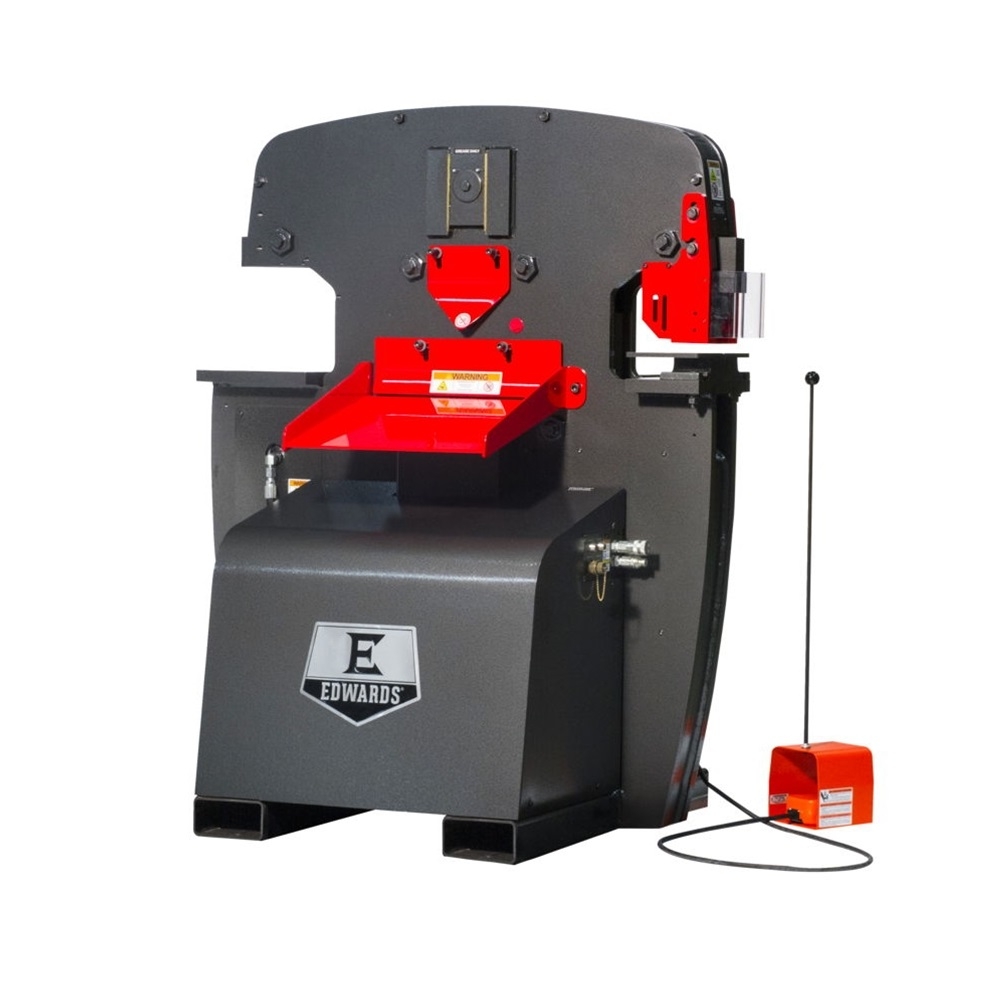

The 55 Ton Ironworker is Edwards' best selling Universal Open Tooling Station. It features an Electric Stroke Control and is ANSI B11.5-1988R(02) Compliant with ETL/UL Approved Controls.
The Edwards 55 Ton Ironworker is well suited to fit the needs of any fab shop, large or small. Standard features include a Punch Assembly with Pedestal Die Table, Flat Bar Shear, Angle Shear and a universal open tooling station designed to accept optional Tooling Accessories.
The optional PowerLink System allows your Ironworker to act as a power source to our expanding line of innovative PowerLink Hydraulic Tools, such as the 10 Ton Tube/Pipe Bender, 20 Ton Shop Press and 40 Ton Shop Press.
PUNCH
Rating: 55 Tons
Max. Capacity: 1-1/16" Dia. in 5/8" A36 (65,000 PSI Tensile)
Stroke: 1-1/4"
Throat Depth: 7-1/2"
Open Height: 8-1/8"
Shut Height: 6-7/8"
Work Height: 36-9/16"
FLAT BAR SHEAR
Max. Capacity: 3/8" x 14", 1/2" x 12", 3/4" x 4"
Max. Round: 7/8"
Max. Square: 7/8"
Work Height: 34-1/2"
ANGLE SHEAR
Max. Capacity: 3" x 3" x 3/8", 4" x 4" x 1/4"
Work Height: 39-7/8"
Specifications
- Throat Depth: 11-3/16"
- Open Height: 8-1/8"
- Shut Height: 6-7/8"
- Stroke: 1-1/4"
- Work Height: 34-1/2"
- Hydraulic Pump: 3-1/2 GPM - 1 Stage
- Valve Pressure: 2500 PSI
- Reservoir: 7 Gallons
- Cylinder: 2-1/2" Ram
- Height: 55-1/4"
- Width: 44-3/8"
- Depth: 36-1/8"
- Shipping Weight: 2480 lb
