About this product

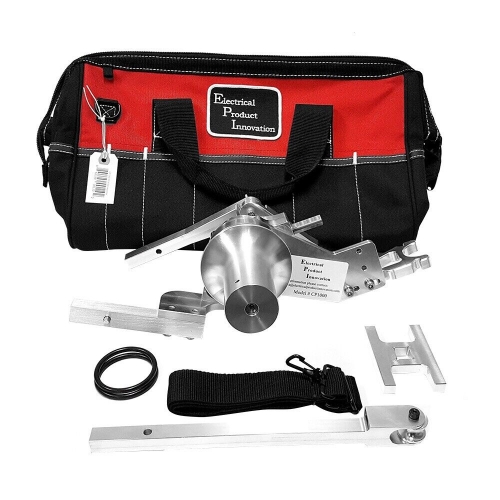

The CP1000 comes complete with all the attachments for any type of wire pull, in a sturdy canvas tool bag ! Reduces wire pulling time by 70-80%! Generates 1000 lbs. of pulling force with a continuous pulling force up to 600 lbs. Offers complete variable speed power through cordless drill trigger and setting control. Quick tie cleat to cinch line for anchoring pull line. Knurled Capstan for improved line grip especially when pulling with rope. Removable capstan end cap for greater pull line capacity. Quick release attachments with steel stainless steel lanyards .Removable input shaft adapter for easy change out due to bad drill chucking.
Solid Aluminum mounting brackets and rubber gaskets. Solid machined billet aluminum body with adjustable brackets for long life and adjustability. Stainless steel receiver extender bracket for strength in high stress points. Slotted extender roller arm with removable and adjustable conduit clamp for anchoring conduit pulls. Pivoting extender arm adjusts from 30, 60, and 90 degrees to ensure optimal angle and reduction of friction. Fits most 18V/20V drill motors. Attachments can be extended to any length with 1" rigid conduit. Perfect for all branch circuitry for data cabling, multiple branch circuits & small feeder wire.
Used in the following applications: Electrical Junction Boxes, Gutters, Switchgear, Underground and Overhead Conduits, Sub Panels, Light Standards, Pull Rope Installation and many more!
Specifications
- Length: 24" (When Fully Extended)
- Works for Wire/Cable Gauge: up to 1/0
- Pulls: Cable and Low Voltage Wiring
