About this product

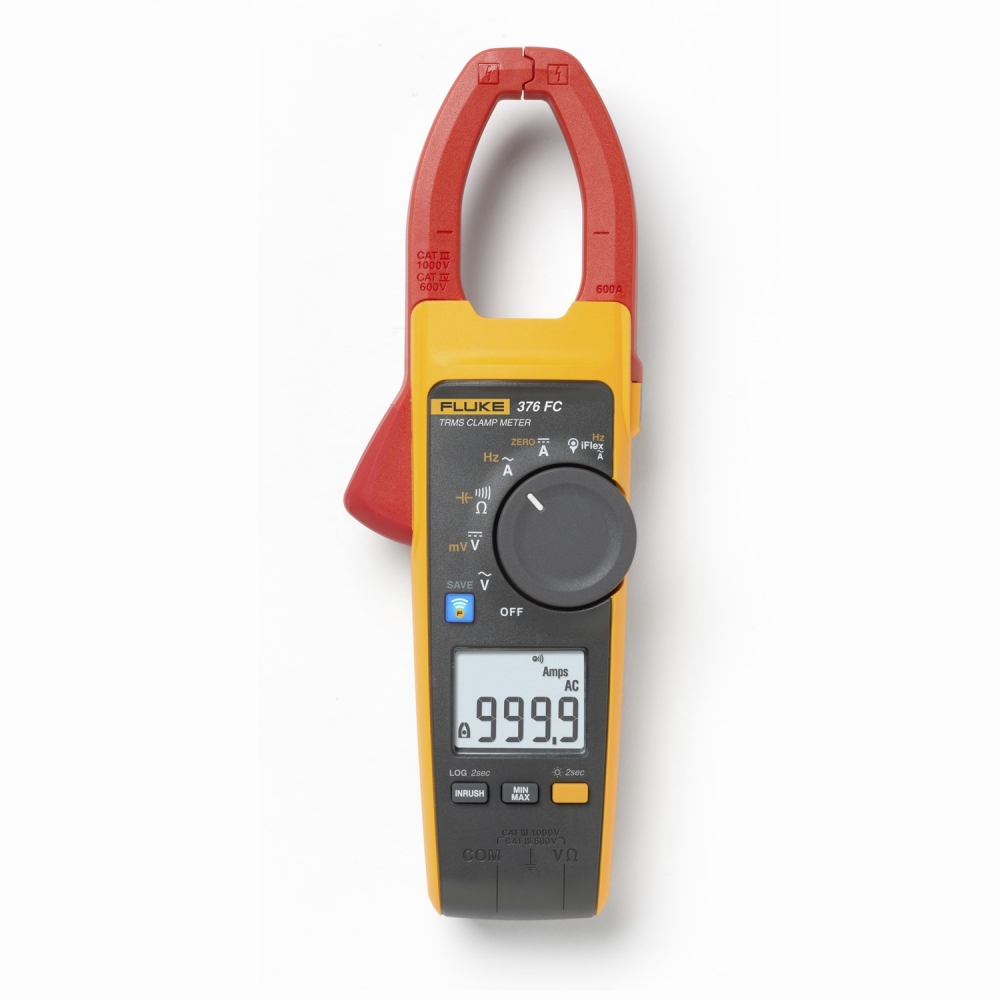

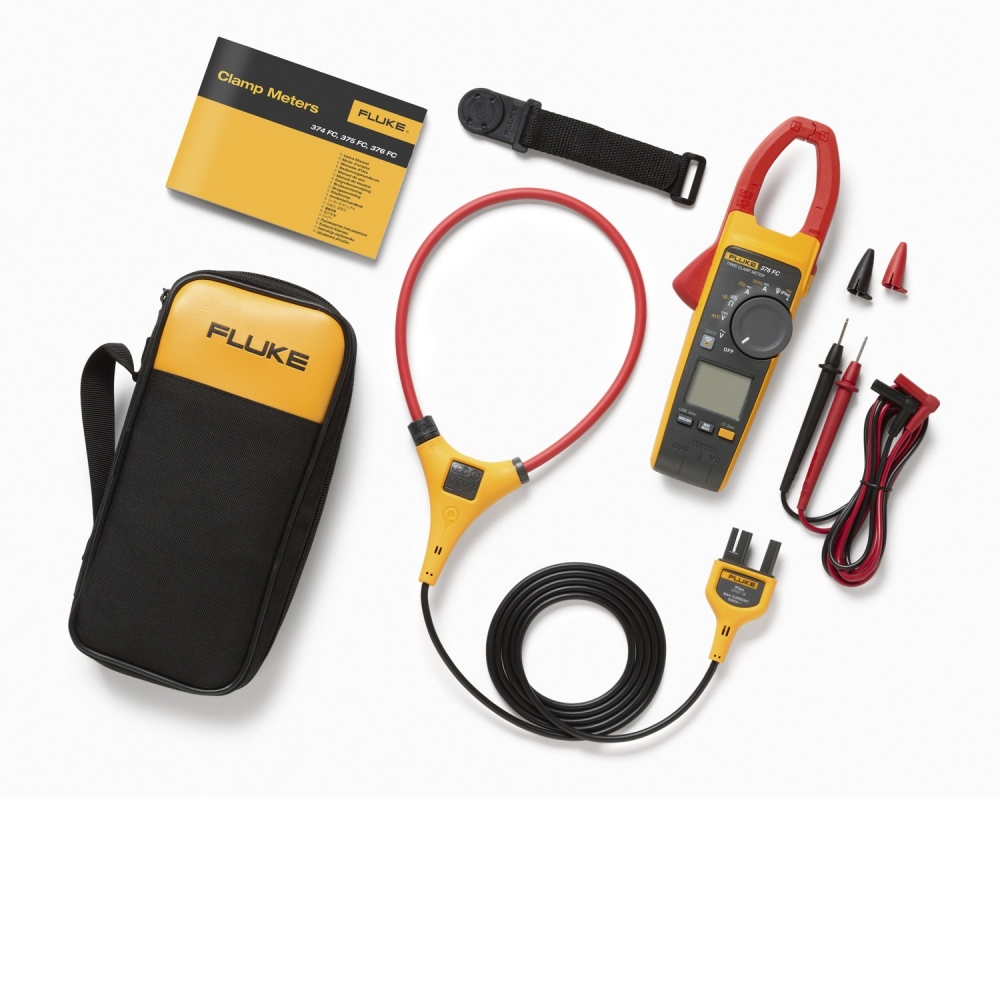

The Fluke 376 FC Wireless True-rms AC/DC Clamp Meter offers measurements up to 1000 V and 1000 A, AC or DC, plus includes iFlex Flexible Current Clamp. Log and trend measurements help pinpoint intermittent faults.
Transmit results wirelessly via Fluke Connect Measurements app, create and send reports right from the field. Stay safely away from the arc flash zone through Bluetooth connectivity to Apple and Android devices.
Specifications
- AC Current via Jaw
- Range: 999.9 A
- Resolution: 0.1 A
- Accuracy: 2% ±5 digits (10 Hz to 100 Hz), 2.5% ±5 digits (100-500 Hz)
- Crest Factor: (50 Hz/60 Hz) 3 @ 500 A, 2.5 @ 600 A, Add 2% for C.F. >2
- AC Current via Flexible Current Probe
- Range: 2500 A
- Resolution: 0.1 A (≤ 600 A), 1 A (≤ 2500 A)
- Accuracy: 3% ±5 digits (5 – 500 Hz)
- Crest Factor: (50/60Hz) 3.0 at 1100 A, 2.5 at 1400 A, 1.42 at 2500 A, Add 2% for C.F. > 2
- DC Current
- Range: 600.0 A
- Resolution: 0.1 A
- Accuracy: 2% ±5 digits
- AC Voltage
- Range: 1000 V
- Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V)
- Accuracy: 1.5% ±5 digits (20 Hz to 500 Hz)
- DC Voltage
- Range: 1000 V
- Resolution: 0.1 V (≤600.0 V), 1 V (≤1000 V)
- Accuracy: 1% ±5 digits
- mV DC
- Range: 500.0 mV
- Resolution: 0.1 mV
- Accuracy: 1% ±5 digits
- Frequency via Jaw
- Range" 5.0 Hz to 500.0 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5% ±5 digits
- Trigger level: 5 Hz to 10 Hz, ≥10 A, 10 Hz to 100 Hz, ≥5 A, 100 Hz to 500 Hz, ≥10 A
- Frequency via Flexible Current Probe
- Range: 5.0 Hz to 500.0 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5% ±5 digits
- Trigger level: 5 Hz to 20 Hz, ≥25 A, 20 Hz to 100 Hz, ≥20 A, 100 Hz to 500 Hz, ≥25 A
- Resistance
- Range: 60 kΩ
- Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω), 10 Ω (≤60 kΩ)
- Accuracy: 1% ±5 digits
- Capacitance
- Range: 1000 μF
- Resolution: 0.1 μF (≤ 100 μF) 1 μ F (≤ 1000 μF)
- Accuracy: 1% ±4 digits
- Mechanical Specifications
- Maximum Voltage Between Any Terminal and Earth Ground: 1000 V
- Batteries: 2 AA, NEDA 15A, IEC LR6
- Operating Temperature: -10 °C to +50 °C
- Storage Temperature: -40 °C to +60 °C
- Operating Humidity Non-Condensing (< 10°C) ≤90% RH (at 10 °C to 30 °C) ≤75% RH (at 30 °C to 40 °C) ≤45% RH (at 40 °C to 50 °C)
- Operating Altitude: 3000 m
- Storage Altitude: 12,000 m
- Jaw opening: 34 mm
- Flexible Current Probe Diameter: 7.5 mm
- Flexible Current Probe Cable Length
- (head to electronics connector): 1.8 m
- Safety: IEC 61010-1, Pollution Degree 2, IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V, IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V
- IP Rating: IEC 60529: IP30, non-operating
- Radio Frequency Certification FCC ID: T68-FBLE IC:6627A-FBLE
