About this product

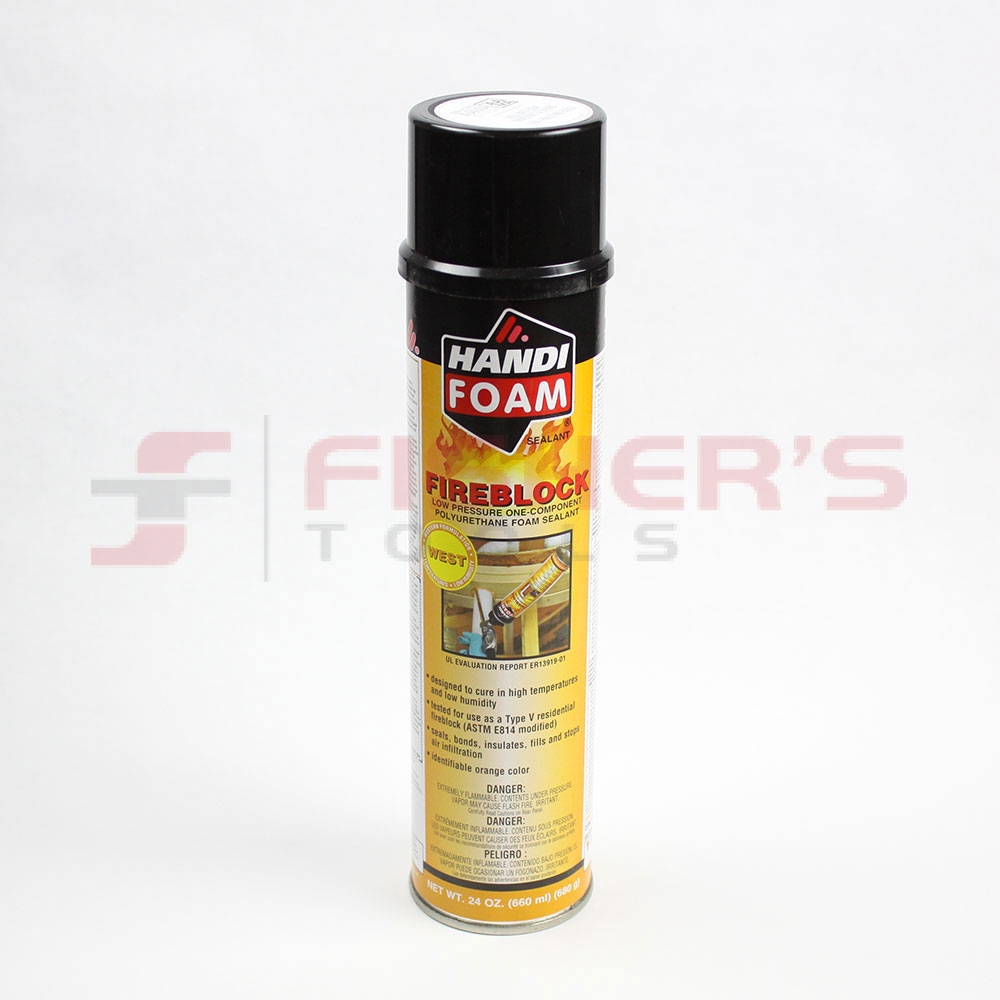

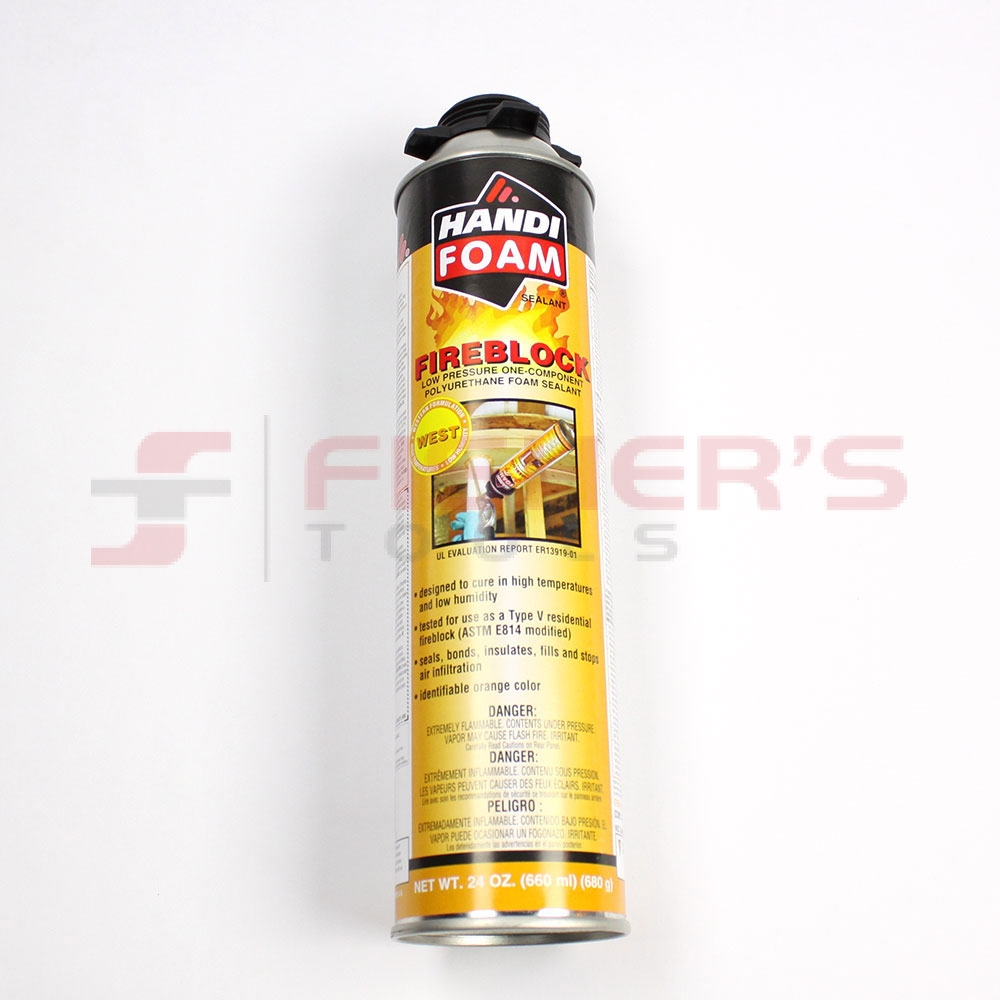

Handi-Foam Fireblock West low pressure one-component polyurethane foam sealant is a moisture cured sealant designed to seal, fill, bond and stop air infiltration in areas with high temperature and low humidity climates. Handi-Foam Fireblock West has a recognizable orange color allowing inspectors to easily identify the use of an approved fireblock product for Type V residential construction. Due to its expansion characteristics, Handi-Foam Fireblock West is more effective than many traditional fireblocking materials for the blocking of flames and smoke in concealed penetrations, preventing flame spread from room to room and floor to floor.

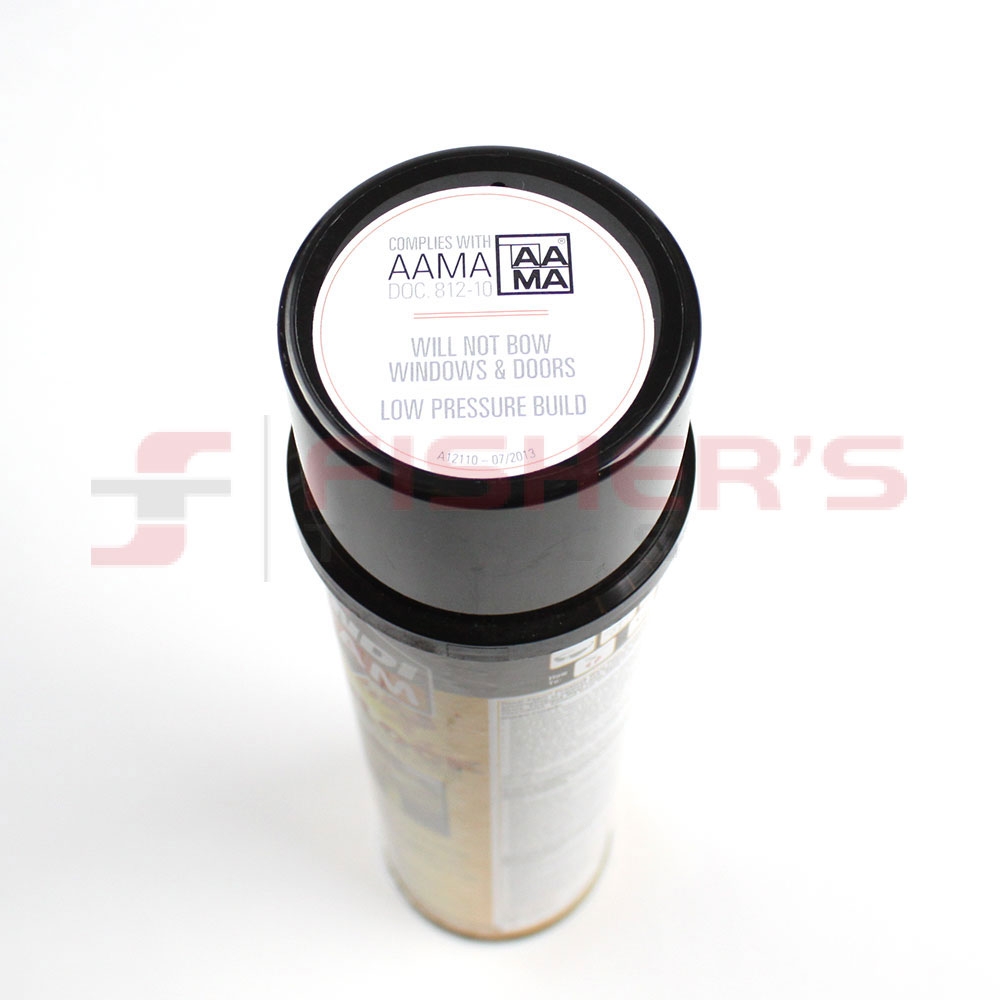

Handi-Foam Fireblock West is UL GREENGUARD Gold certified contributing to healthier indoor environments and complies with AAMA Doc. 812 for a low pressure build that will not bow or distort windows and doors. Handi-Foam Fireblock West is available in gun foam and can be dispensed using a Handi-Tool Dispensing Unit.
Common uses for this product include:
Sealing insulation board joints
Type V residential fire blocking
Sealing electrical outlets
Sealing electrical openings
Sealing windows and doors
Sealing through stud penetrations
Sealing baseplates
Sealing plumbing penetrations
Specifications
- R-Value: 4.2 at 1" thick
- Density: 1.40 lb/ft3 (22.4 kg/m3)
- Tack-Free Time: Approx. 5 minutes
- Cuttable: Less than an hour
- Fully Cured Time: 12 - 24 hours
- Cell Structure: 87% OPEN cell content
- Fire Rating: ASTM E84/UL 723, Caulking & Sealant @ 3/4" bead
- Flame Spread: 25
- Smoke Developed: 50
- GREENGUARD Gold Certified
- UL ER #13919-01
- AAMA 812 Compliant
- Shelf Life: 15 months
- Coverage: 3142 ft (958 m)
