About this product

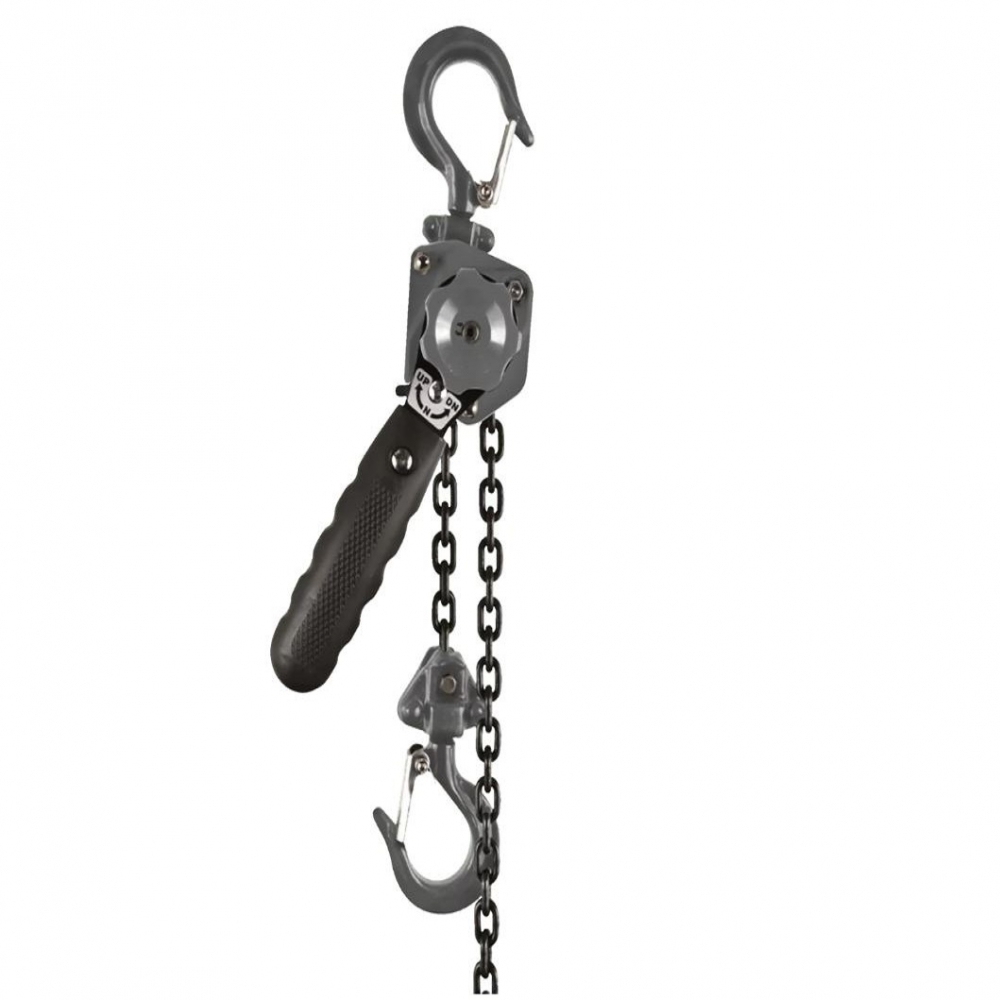

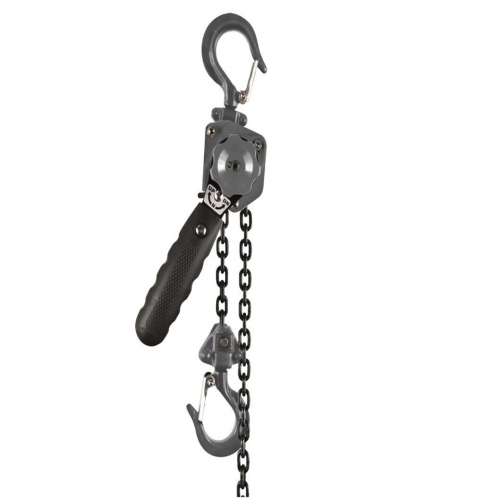

JET JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET JLP-A lever hoist is available in 1/4 ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET JLP-A Series is the perfect choice for a contractor grade lever hoist.
Specifications
- Load Capacity (Tons): 1/2
- Lift (Ft.): 10
- Overload Protection: No
- Ship Yard Hooks: No
- Headroom (In.): 10
- Handle Length (In.): 8-1/2
- Lever Pull Force (LBF): 86
- Lift per Turn (In.): 2-5/6
- Number of Falls: 1
- Load Chain Dimensions (Mm.): 4.3 x 12
- Hook Throat Opening (In.): 1-3/8
- Overall Width (In.): 3-3/4
