About this product

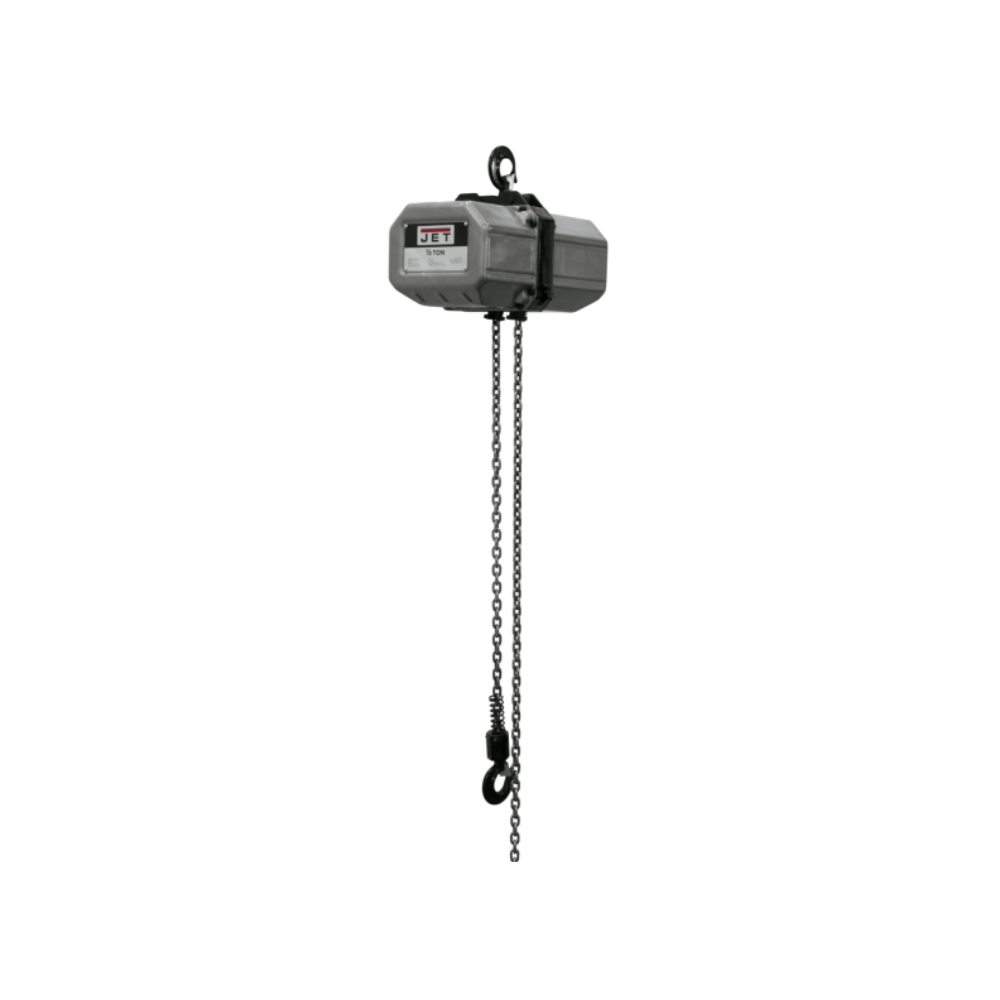

The JET® SSC Series Electric Hoists offer exceptional safety and durability with features like slip clutch overload protection, thermal overload protection for single-phase models, and a reverse phase relay for three-phase models. The industry-proven DC electro-magnetic brake ensures load security, while the maintenance-free, sealed gear train provides reliable long-term performance. Available in capacities from ½-ton to 5-ton with standard lifts of 10, 15, and 20 feet.
Specifications
- Stock Number: JT9-121150
- Capacity (Lbs.): 1000
- Duty Cycle (%): 25
- Duty Cycle Rating: H3
- Lift (Ft.): 15
- Lifting Speed (FPM): 19
- Load Capacity (Tons): 1/2
- Max. Number of Starts (Per Hr.): 150
- Max. On Time (Min. / Hr.): 15
- Model Number: 1/2SS-1C-15
- Motor (HP): 7/8 HP, 115 / 230V, 1 Ph
- Motor Phase: 1
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Weight (Lbs.): 106
- Gross Weight: 123.0
- Net weight: 115.0
- Headroom (In.): 20-3/16
- Overall Width (In.): 10.24
- Motor Current (Amps): 8
- Length: 21"
- Height: 15"
- Brand: Jet Tools
