About this product

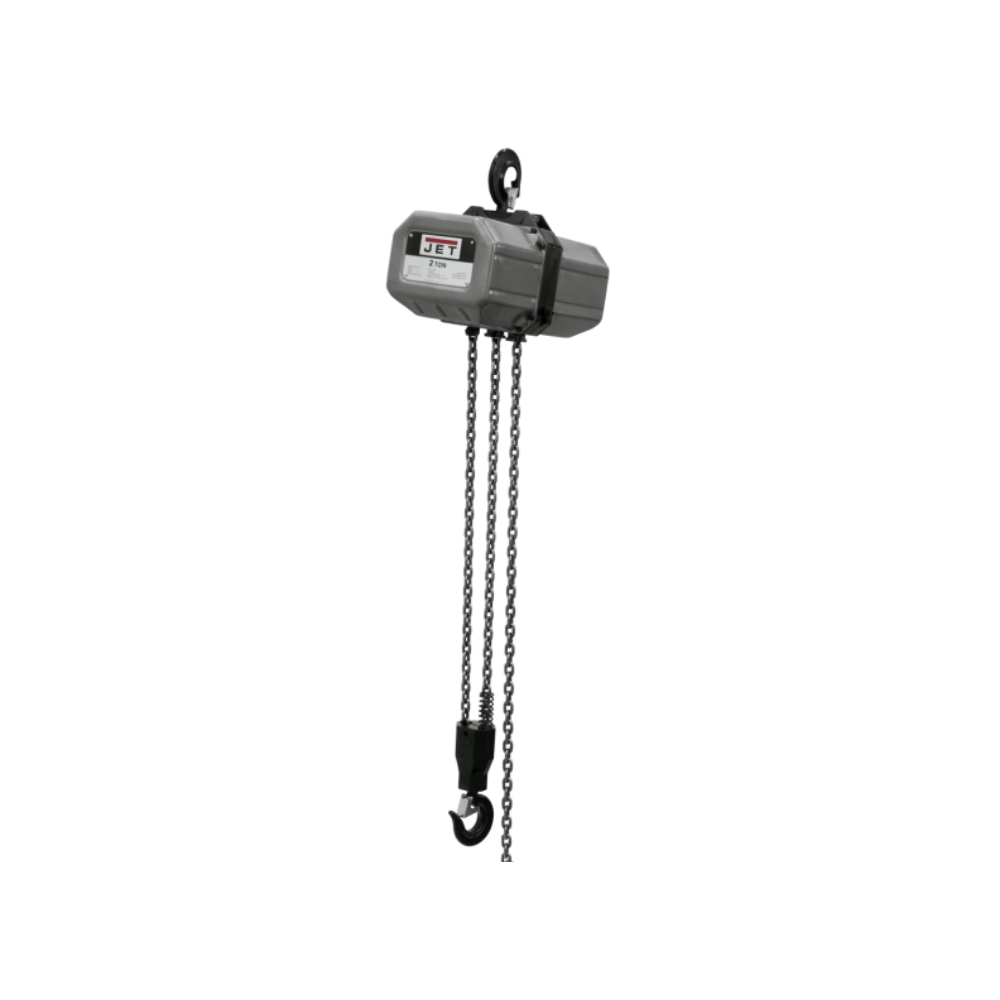

JET® SSC Series Electric Hoists offer reliable performance with features like slip clutch overload protection, thermal overload protection for single-phase models, and reverse phase relay for three-phase models. These hoists feature durable all-steel construction, Grade 80 load chain, and NEMA 4X compliant push button controls, making them ideal for commercial and industrial use. The sealed maintenance-free gear train and safety limit switches further enhance their safety and durability.
Specifications
- Stock Number: JT9-232000
- Capacity (Lbs.): 4400
- Duty Cycle (%): 30
- Duty Cycle Rating: H4
- Lift (Ft.): 20
- Lifting Speed (FPM): 12
- Load Capacity (Tons): 2
- Max. Number of Starts (Per Hr.): 180
- Max. On Time (Min. / Hr.): 18
- Model Number: 2SS-3C-20
- Motor (HP): 2-1/7 HP, 460V, 3 Ph
- Motor Phase: 3
- Prop 65: Cancer and Reproductive Harm
- Warranty: 2 Year
- Weight (Lbs.): 190
- Gross Weight: 196.0
- Net weight: 177.0
- Headroom (In.): 28-1/8
- Overall Width (In.): 11.81
- Motor Current (Amps): 12
- Length: 22.5"
- Height: 14.75"
- Brand: Jet Tools
