About this product

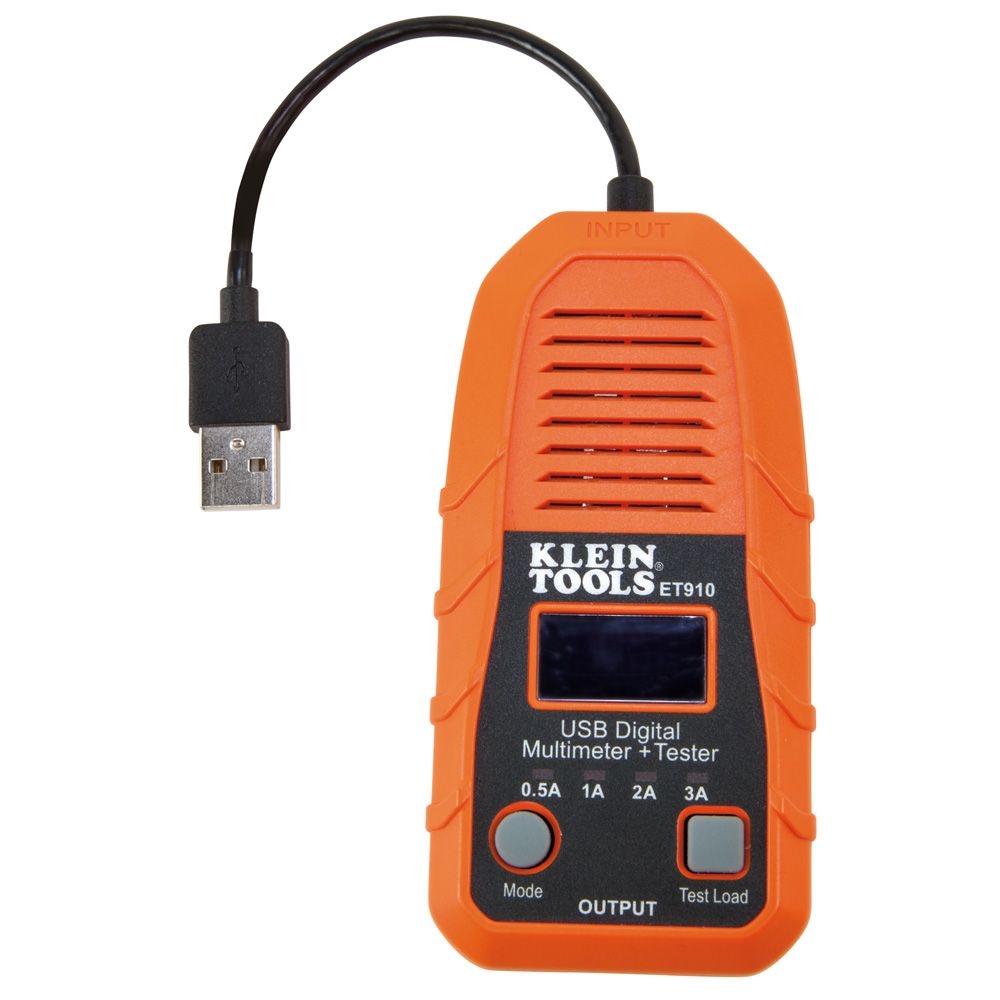

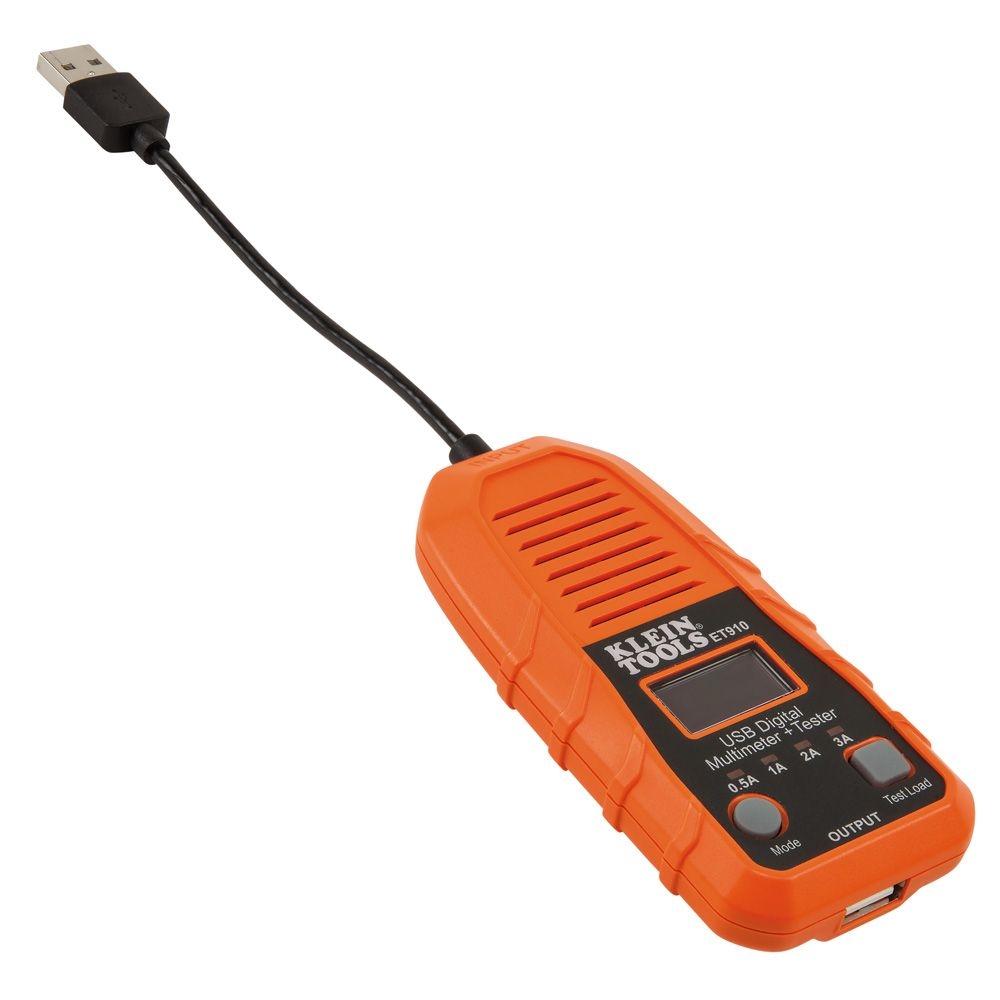

Powered by the USB being tested, this no-battery tester is designed to test most common-standard USB-A ports, including Qualcomm Quick Charge® ports, and continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and calculated resistance.
Storing up to 10 readings that can be recalled, the device has a hi-resolution LCD for clear visibility in environments with low ambient lighting and is built to withstand a drop from up to 6.6 feet high.
Specifications

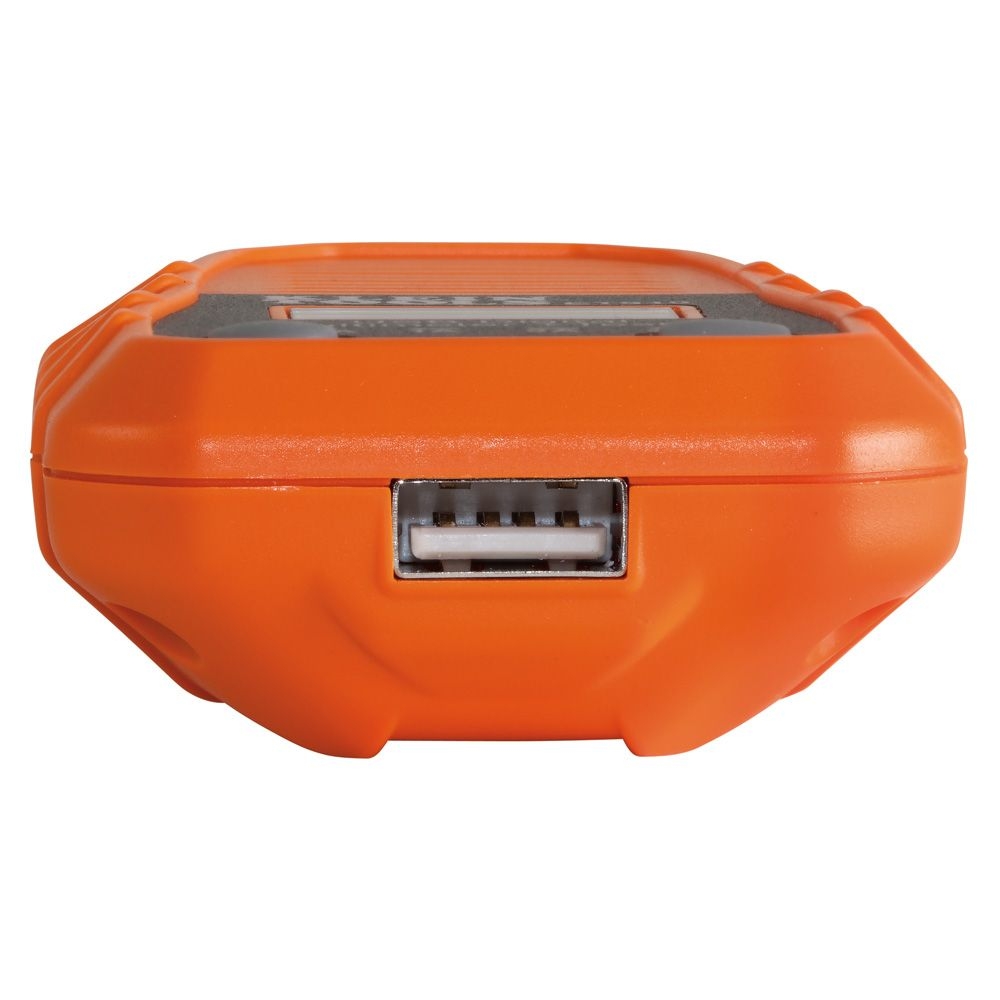

- Type: USB-A (Type A)
- Application: USB Port Voltage, Current, Capacity, Energy, Resistance (Calculated), Max Current
- Special Features: Current Test Loads: 0.5A, 1A, 2A, 3A
- Voltage: 3 to 20V DC
- Current: 0.05 to 3A
- Capacity Used: 99,999mAh Maximum
- Energy Delivered: 999Wh Maximum
- Resistance: 400 ohms Maximum
- Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
- USB Compatibility: USB-A; Qualcomm Quick Charge® Compatible
- Drop Protection: 2 m (6.6')
- Ingress Protection: IP20
- Display: LCD
- Material: Polymer
- Overall Length: 4.31" (109.5 mm)
- Overall Height: 0.98" (24.9 mm)
- Overall Width: 2.15" (54.6 mm)
- Weight: 2.80 oz (79.4 g)
- UPC: 092644691393
