About this product

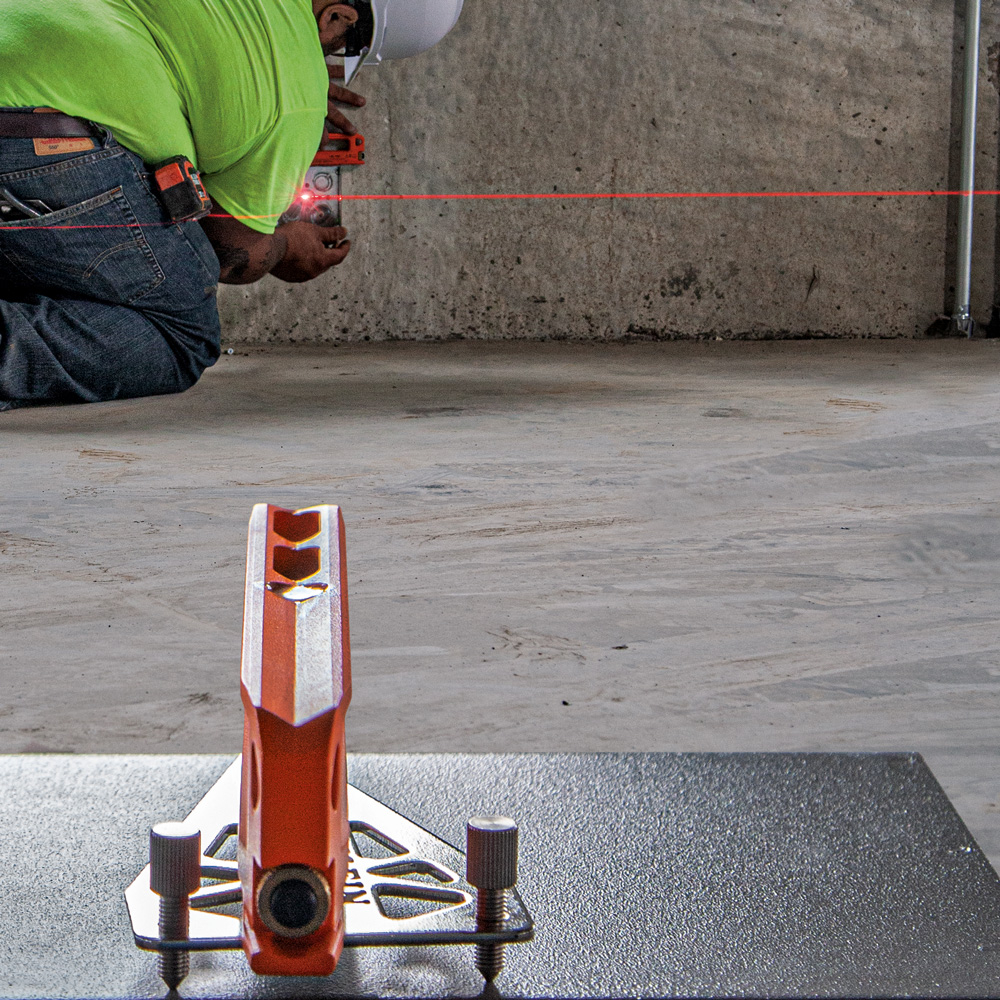

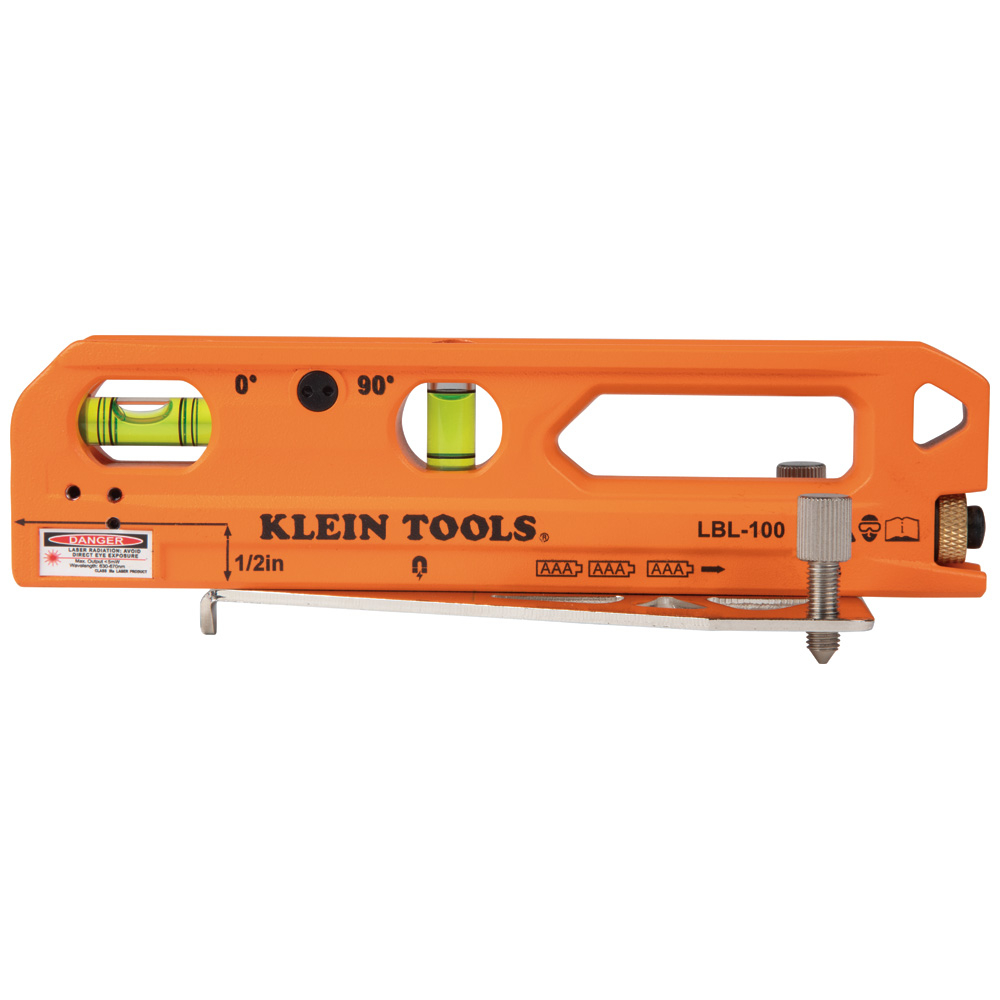

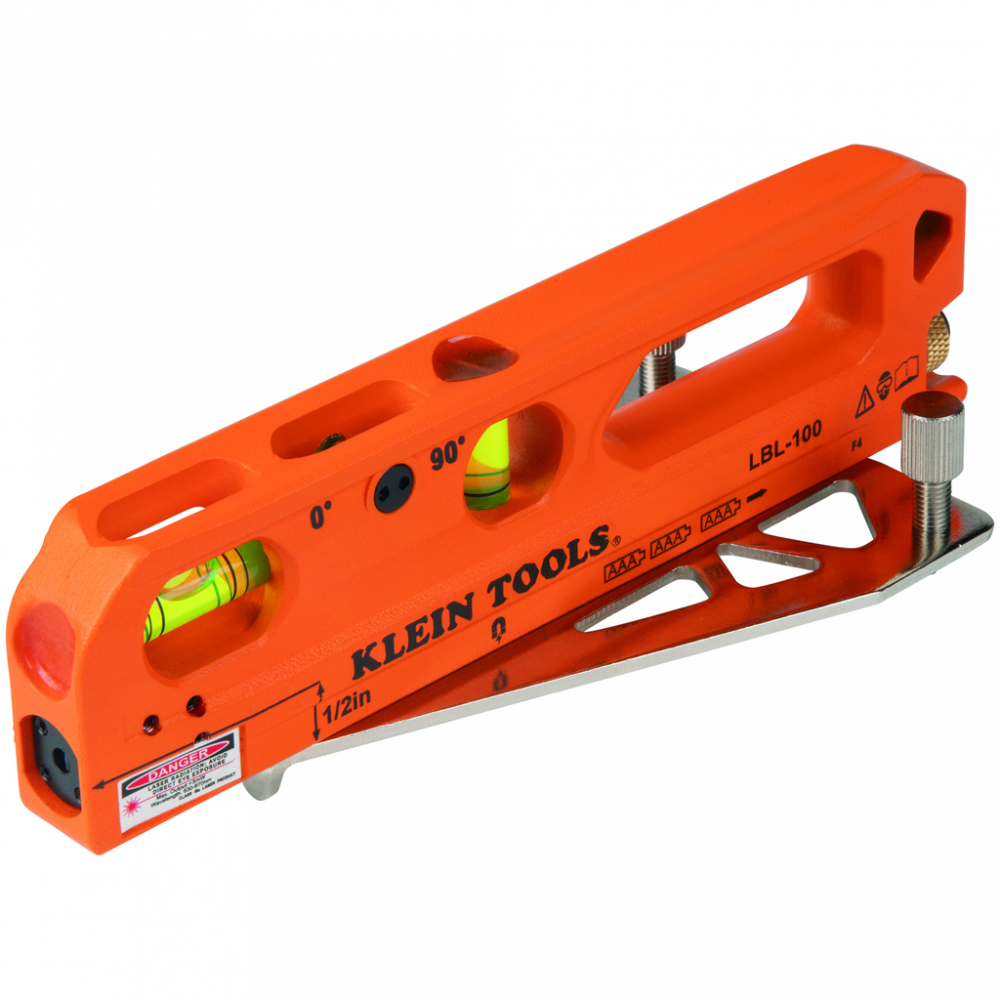

The Klein Tools Laser Line Bubble Level LBL100 projects a high power horizontal laser line and spot parallel to the base that reaches up to 75-Foot (22.9 m). Use the laser to align ceiling tiles, floor tile, studs, wood, saws, and more. Three easy to read vials identify horizontal and cross at 0-Degree level and vertical at 90-Degree. The strong Rare-Earth magnets in the base of the level attach to the included leveling stand and other ferromagnetic surfaces. The top features a V-groove to fit the contour of pipe, conduit, beam, pole, and other round surfaces. Includes a leveling stand for manual leveling on uneven surfaces.
Features

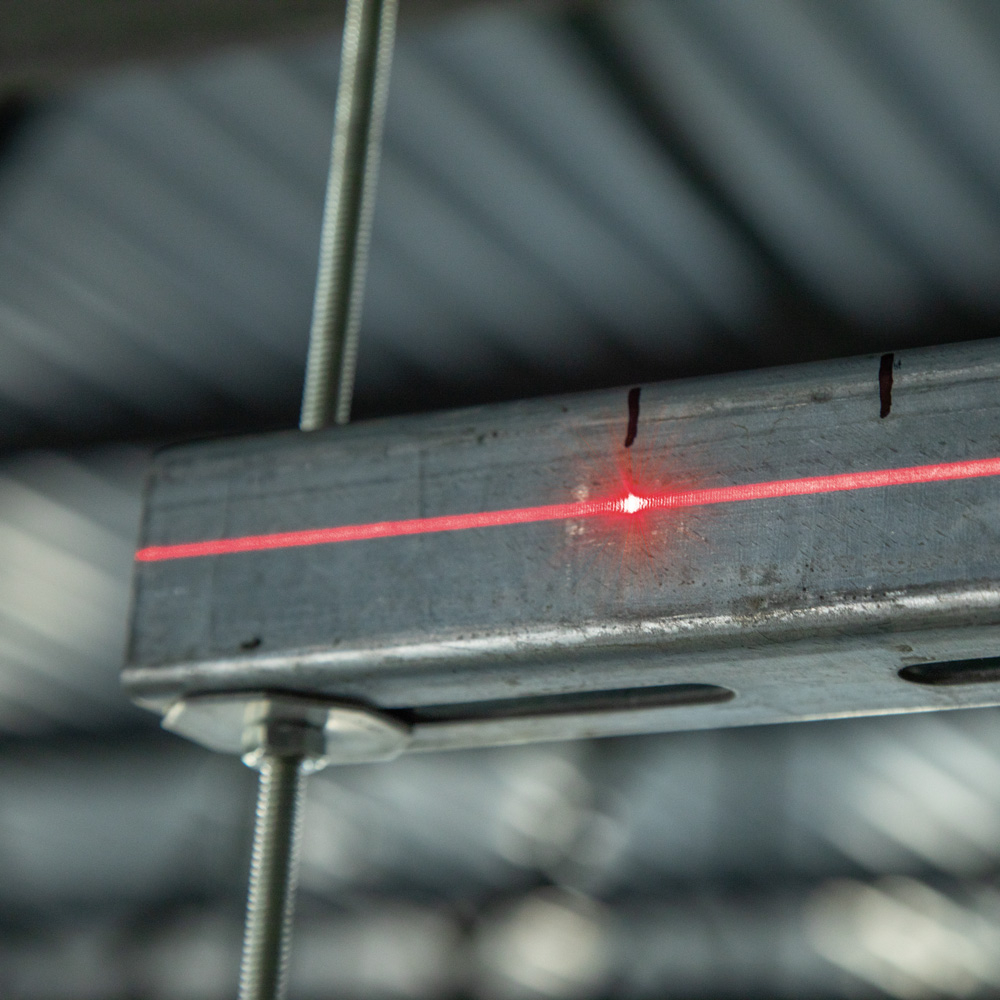

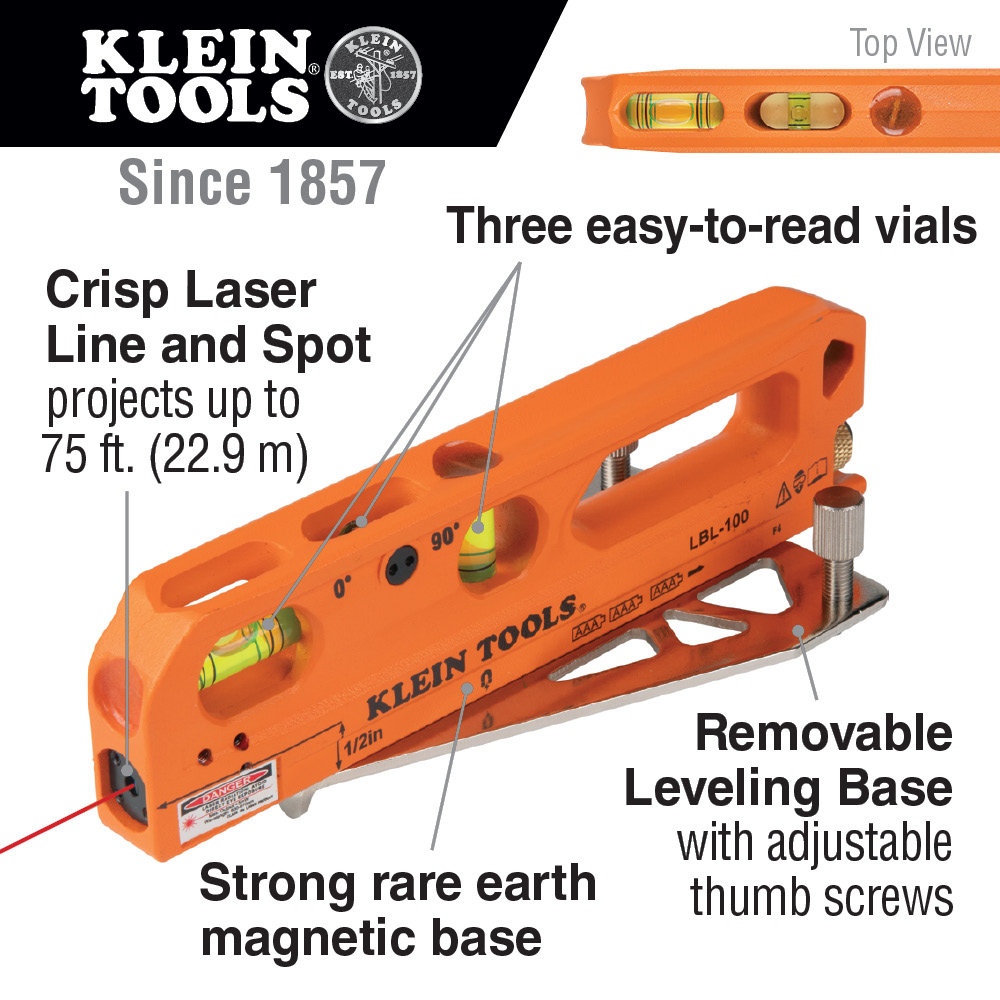

Level projects a crisp, horizontal laser line and spot parallel to the base
Three easy-to-read bubble vials - horizontal and cross vials at 0-Degree level, and vertical vial at 90-Degree

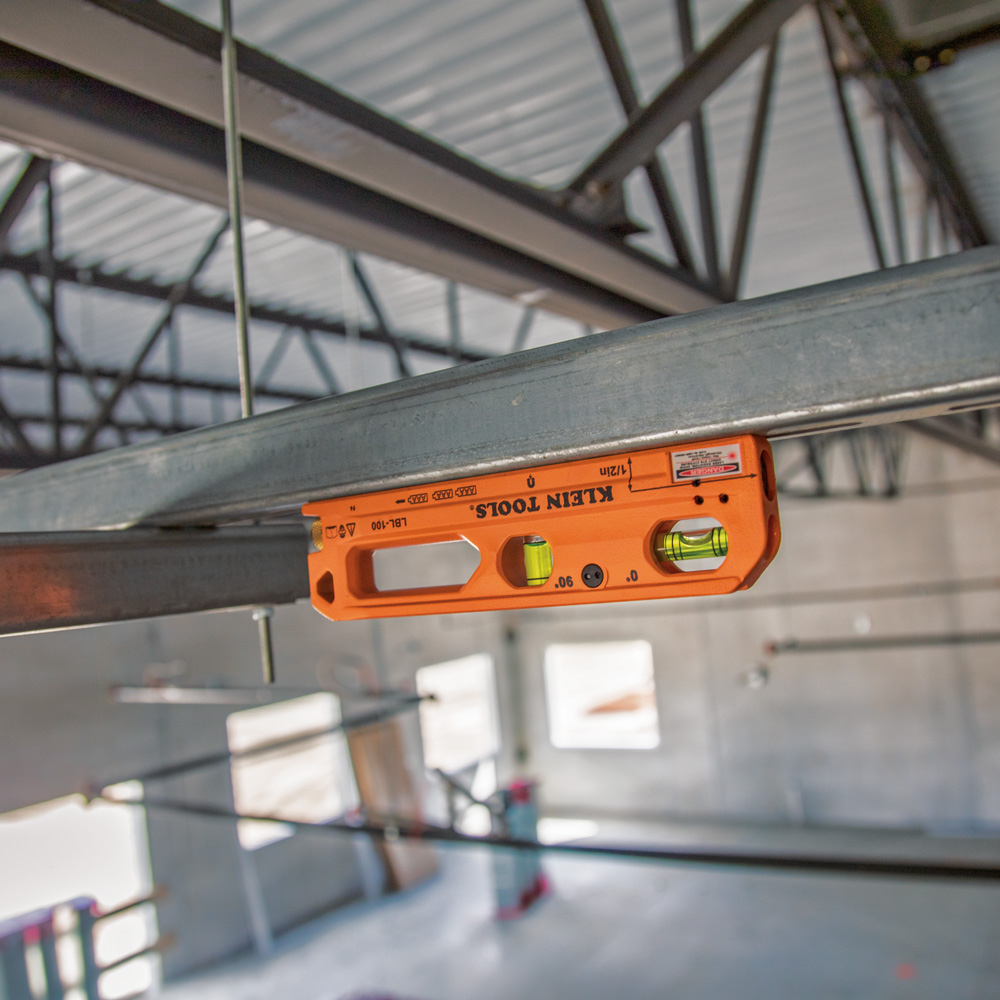

Strong Rare-Earth magnetic base attaches to ferromagnetic surfaces
Crisp laser projects up to 75-Foot (22.9 m) indoors

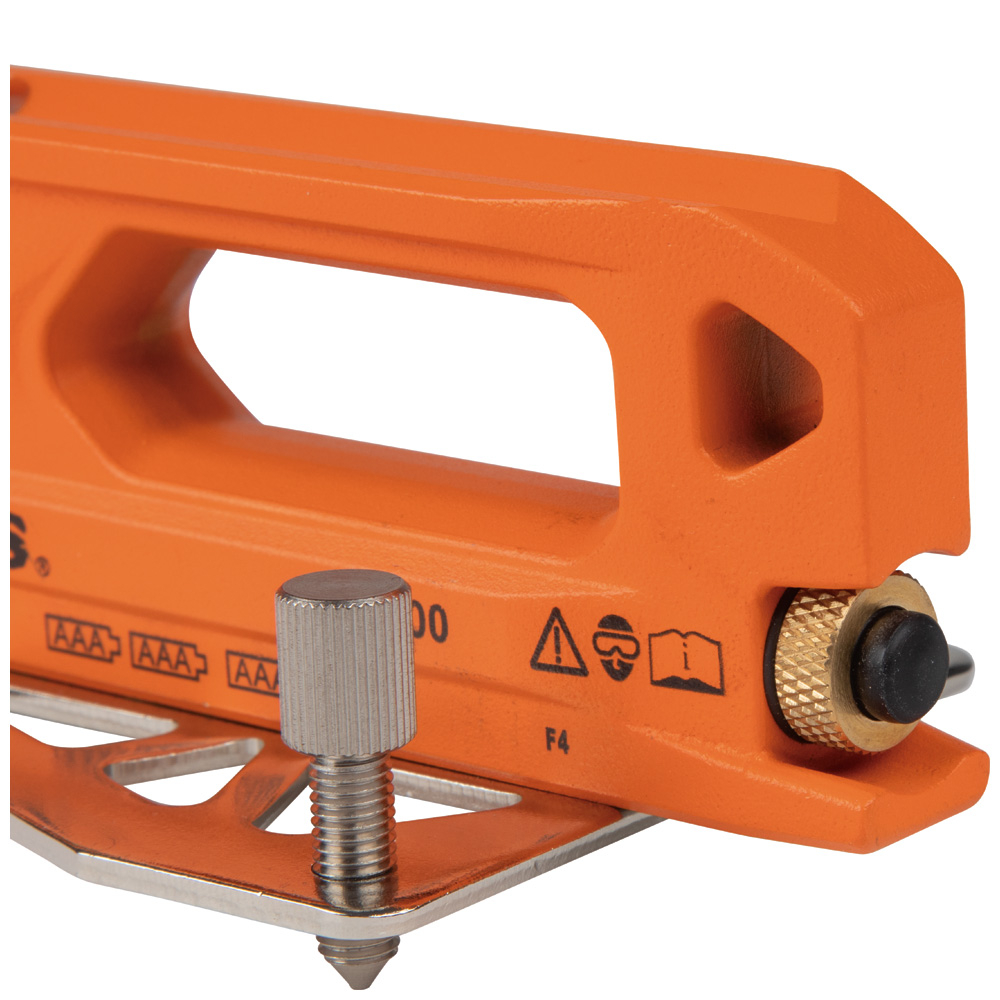

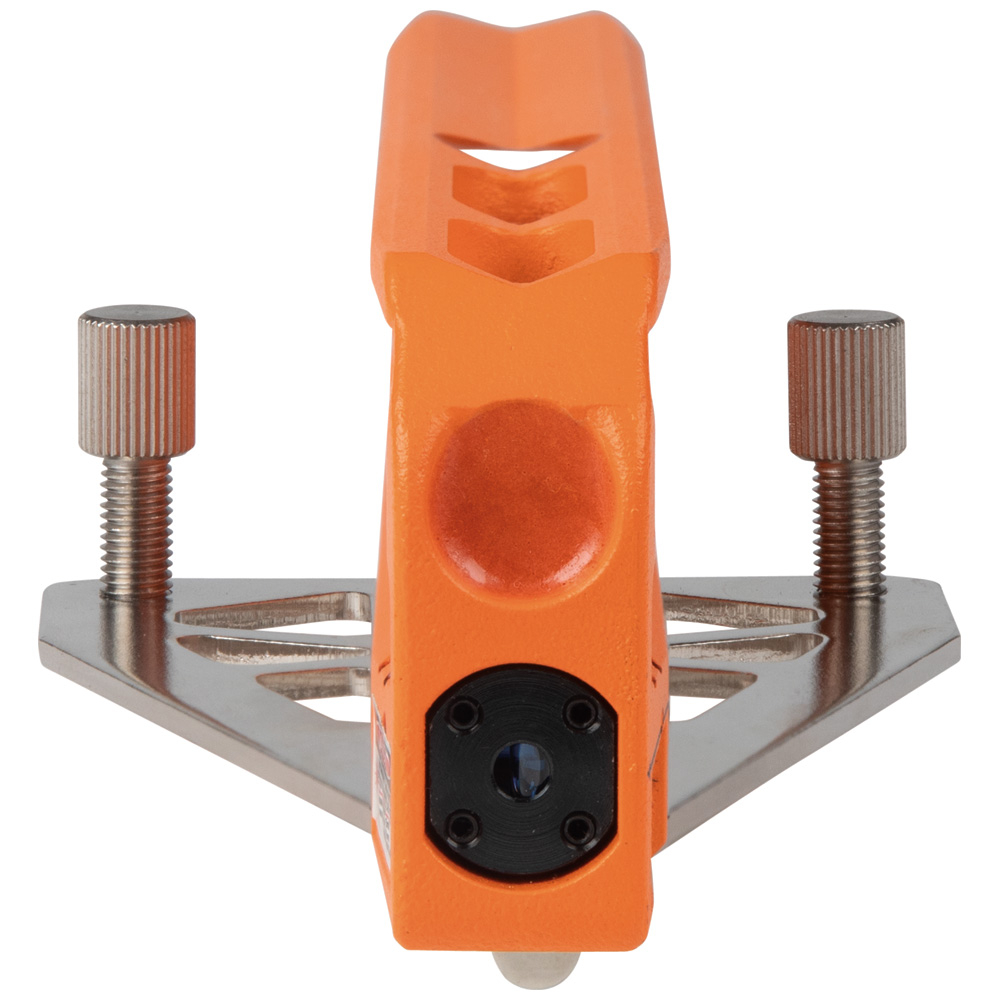

Removable leveling stand has thumb screws for manual leveling on uneven surfaces

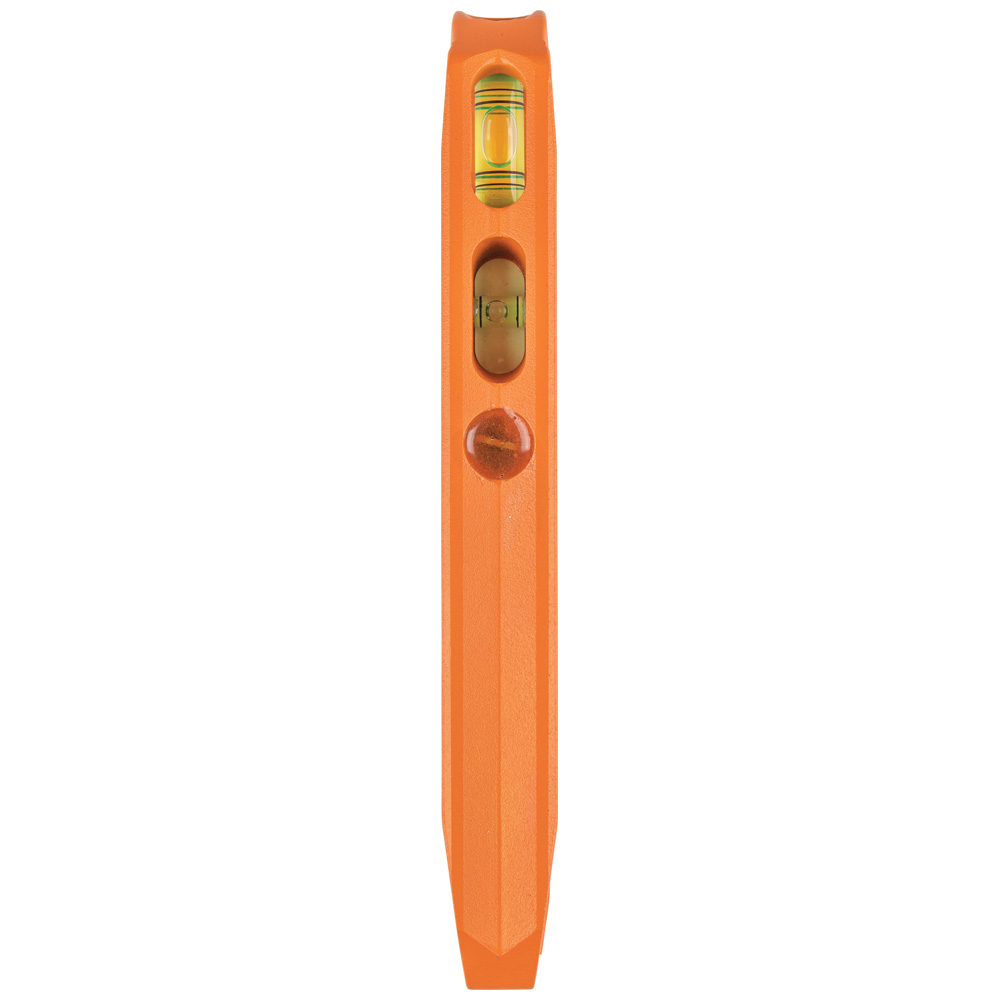

Large top-view vial windows for improved visibility
High-visibility orange cast aluminum body is easy to see on conduit and at jobsites

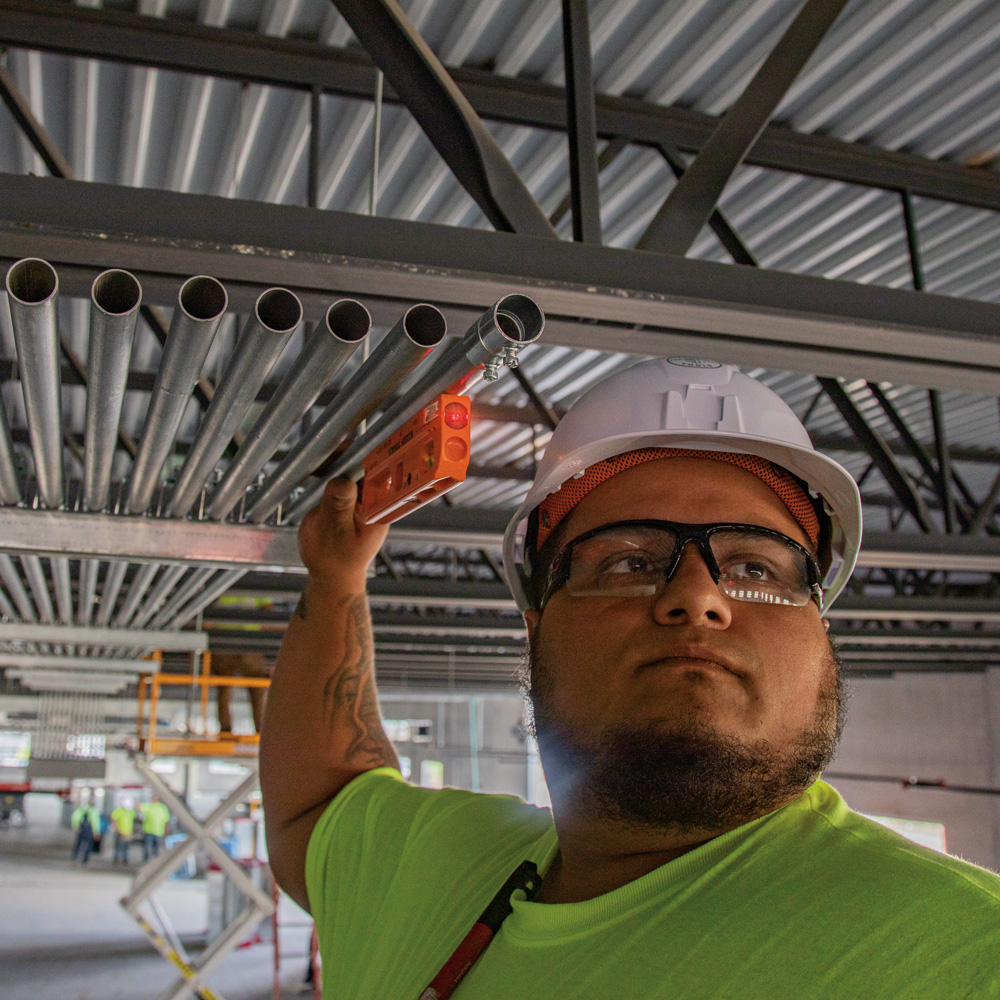

V-groove fits contour of pipe and conduit
1/4-20 Threaded Hole for Tripod, Cross Bubble Vial, Leveling Base Included, Magnetic Mounting, V-groove
Warnings
DANGER - LASER RADIATION, Class III laser. DO NOT direct laser beam into eyes, DO NOT stare into the beam, or DO NOT view directly with optical instruments as this can cause severe and permanent eye damage.
Always wear approved eye protection.
Read instruction manual.
Specifications
- Overall Length: 7.3" (18.5 cm)
- Material: Cast Aluminum
- Overall Width: 0.85" (2.2 cm)
- Laser Wavelength: 630 to 670nm
- Application: Layout Applications Requiring Level and Plumb Checks
- Weight: 15.6 oz (442 g)
- Overall Height: 1.84" (4.7 cm)
- Number of Beams: 1
- Standard: IEC60825-1
- Batteries: 3 x AAA
- Ingress Protection: IP54 - Dust and Water Resistant
- Magnet Type: Neodymium (Rare Earth)

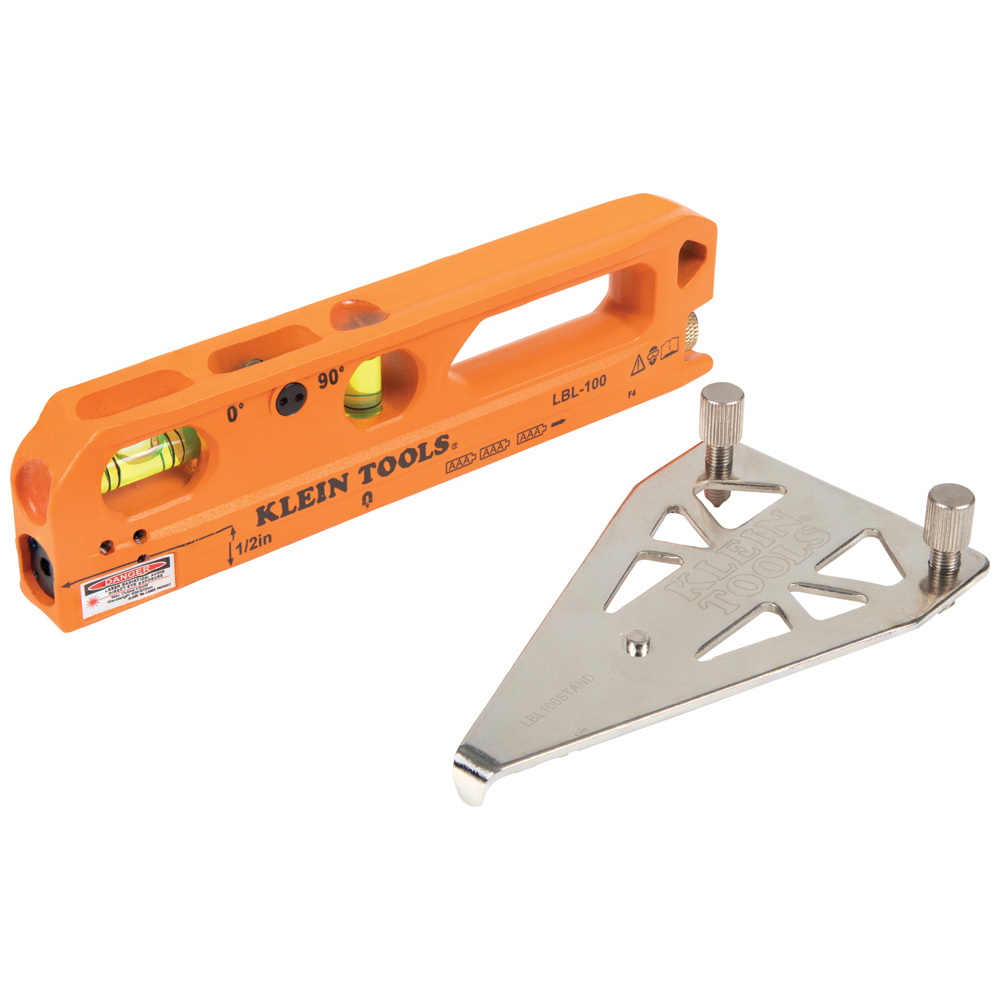

- Included: Level; Leveling Stand; Batteries
- Type: Laser and Bubble
- Accuracy: Vials - 0.043°; Spot - +/-0.02" (+/-0.5 mm) at 39.4" (1 m) from Level
- Indoor Range: 0 to 75' (0 to 23 m)
- Laser Safety: Class 3a, 630 to 670nm, Max Power <5mW
- Maximum Distance: 75' (23 m)
- Laser Color: Red
- Number of Vials: 3
- Type of Vials: 0° Horizontal and Cross, 90° Vertical
- Accessories: 55421BP14, 9225
- Item Height: 0.8500 in
- Item Width: 1.8400 in
- Item Depth: 7.3000 in
- Item Weight: 0.6400 lbs
