About this product

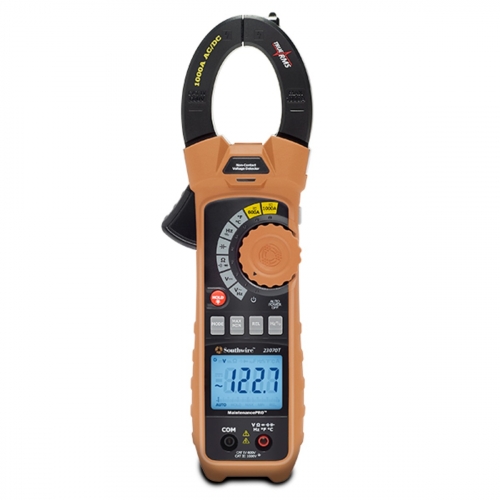

The MaintenancePRO 23070T clamp meter is a tough high end AC/DC clamp meter for the serious electrician who needs both AC and DC current measurements. With a UL listed safety rating of CAT IV 600V / CAT III 1000V, this clamp meter is built to get the hardest of jobs done.
Added features include an easy to read 6,000 count backlit display with built in non-contact AC voltage detector makes the 23070T the new standard residential, commercial, and maintenance AC/DC clamp meters.
Specifications
- AC Current: 60A to 1000A
- AC Voltage: 6V to 1000V
- NCV (Non-Contact AC Voltage Detector): 100 to 1000V AC
- DC Voltage: 600mV to 1000V
- Resistance: 600.0Ω to 60.00MΩ
- Capacitance: Up to 6000µF
- Frequency: 6.000Hz to 10.00MHz
- Duty Cycle: 0.5% to 99.9%
- Temperature: -4 to 1400°F (-20° to 760°C)
- Continuity: Audible beeper < 50W
- Diode Test: Typical test current and open voltage: 0.3mA / < 2V DC
- Safety Rating: CAT IV 600V and CAT lll 1000V
- AC Response: True RMS
- Clamp Size: 1.5" (38mm)
- Operation: Autoranging
- Auto Power Off: 30 minutes (approximately)
- Display: 6000 count backlit LCD
- Operating Temperature: 41° to 104°F (5° to 40°C)
- Storage Temperature: -4° to 140°F (-20° to 60°C)
- Battery: One 9V battery
- Dimensions: 10.3" x 3.3" x 1.7" (262 x 84 x 43mm)
- Weight: 0.69lb (315g)
