About this product

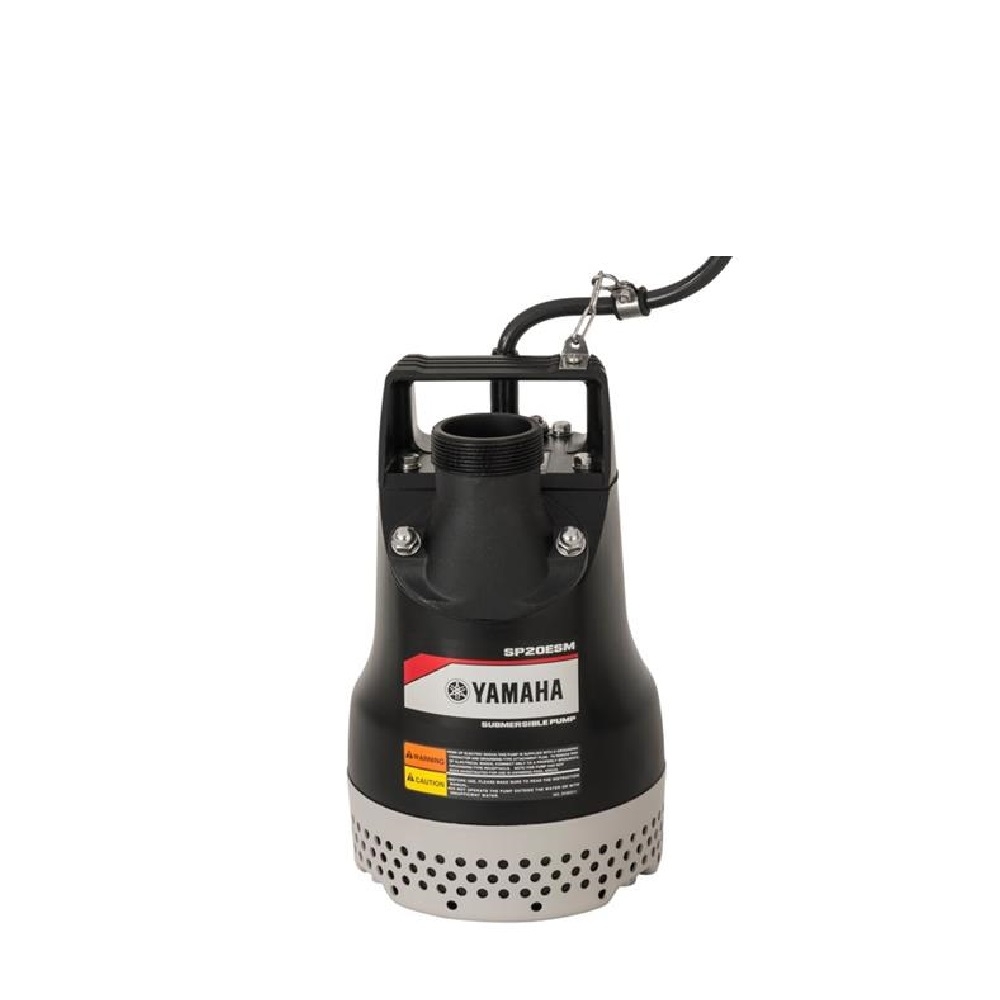

Efficient 1/2 HP Motor – Can pump up to 68 Gallons Per Minute or 4760 Gallons Per Hour for quick and easy dewatering. The SP20ESM Impeller and casing are made from a blended rubber compound providing maximum wear resistance, up to three times over cast iron.
Lightweight Easy to transport weighs only 24 pounds. 2" Port Side discharge and Side/Top discharge. Allows for dewatering surfaces up to 2". The SPESM model can be adjusted to discharge vertically or horizontally.
Double mechanical seals run in an "oil" filled chamber of liquid paraffin to prevent damage during periods of dry running.
Built-in thermal protector turns off the power supply in case of overload, protecting the motor from overheating. Long Electrical Cord 20 ft. with uni-body construction ensuring excellent water tightness and long reach. All parts are replaceable.
Optional Accessories: Float Switch for automatic operation.
Specifications
- Pump Type: Dewatering Electric Submersible
- Discharge Size: 2"
- Discharge Style: Top or Side Discharge
- Voltage: 120
- Rated Current (Amp): 6.4
- Motor Output: 1/2 hp
- Wattage Draw Start-up: 2000
- Running Wattage: 768
- Thermal Overload Protection: Yes
- Dilevery Volume (GPM): 68.5
- Maximum Output (GPH): 4,110
- Maximum Discharge Head (ft): 33
- Float Switch: Optional Accessory
- Power Cord Length (ft): 20 ft.
- Net Weight (lbs.): 24
- Dimensions (LxWxH): .8" x 8" x 13"
- MSRP:
- EF5500DE: $1,999
- EF5500D: $1,829
- Type: Dual voltage, Brushless, AC Generator
- Maximum AC Output: 5500 watts
- Rated AC Output: 4500 watts
- Rated / Maximum AC Current: 36.0 / 44.0 amps @ 120V - 18.75 / 22.9 amps @ 240V
- Engine: MZ360
- Displacement: 358cc
- L x W x H: 29.1 x 29.0 x 31.5 in
- Dry Weight: 221.7 lb
- Fuel Tank Capacity: 6.9 gal
- Continuous Operation at Rated Load: 9.0 hr
- Noise Level: 74.1 dBA
- Warranty: 3 Years Limited Warranty
