About this product

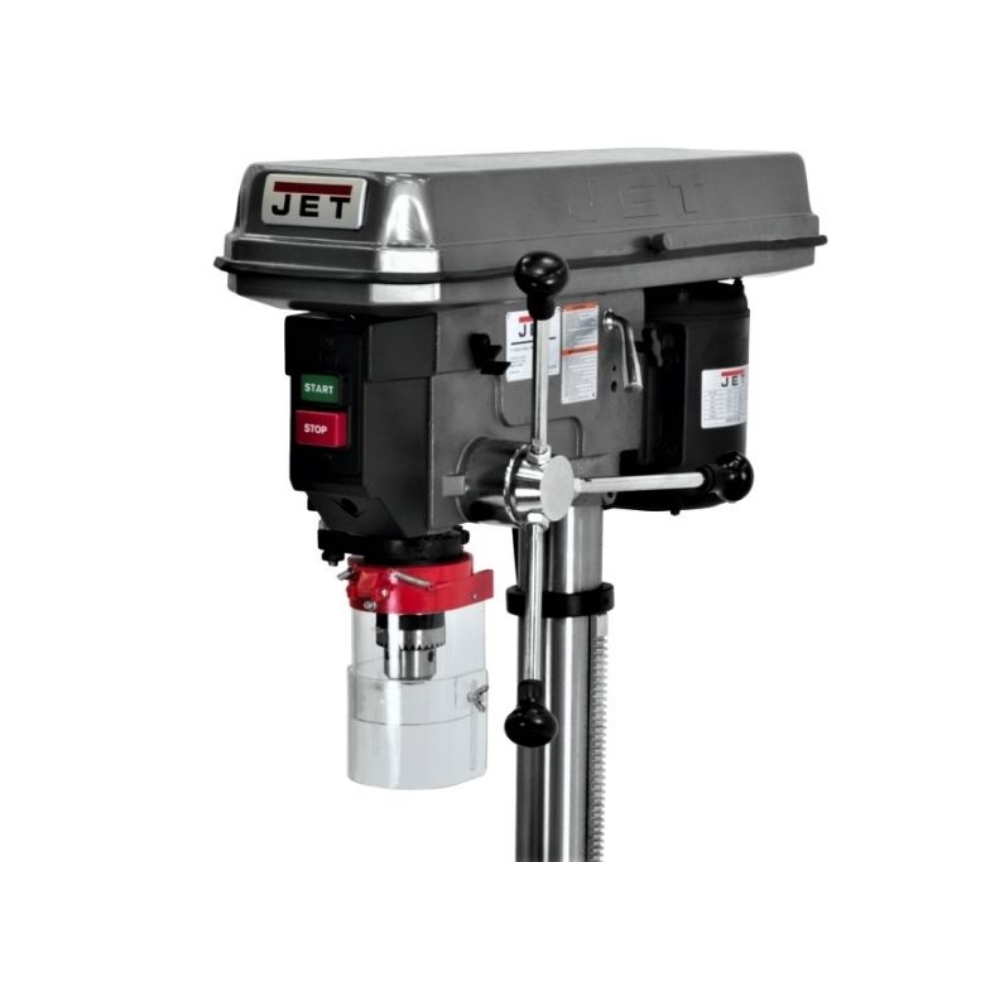

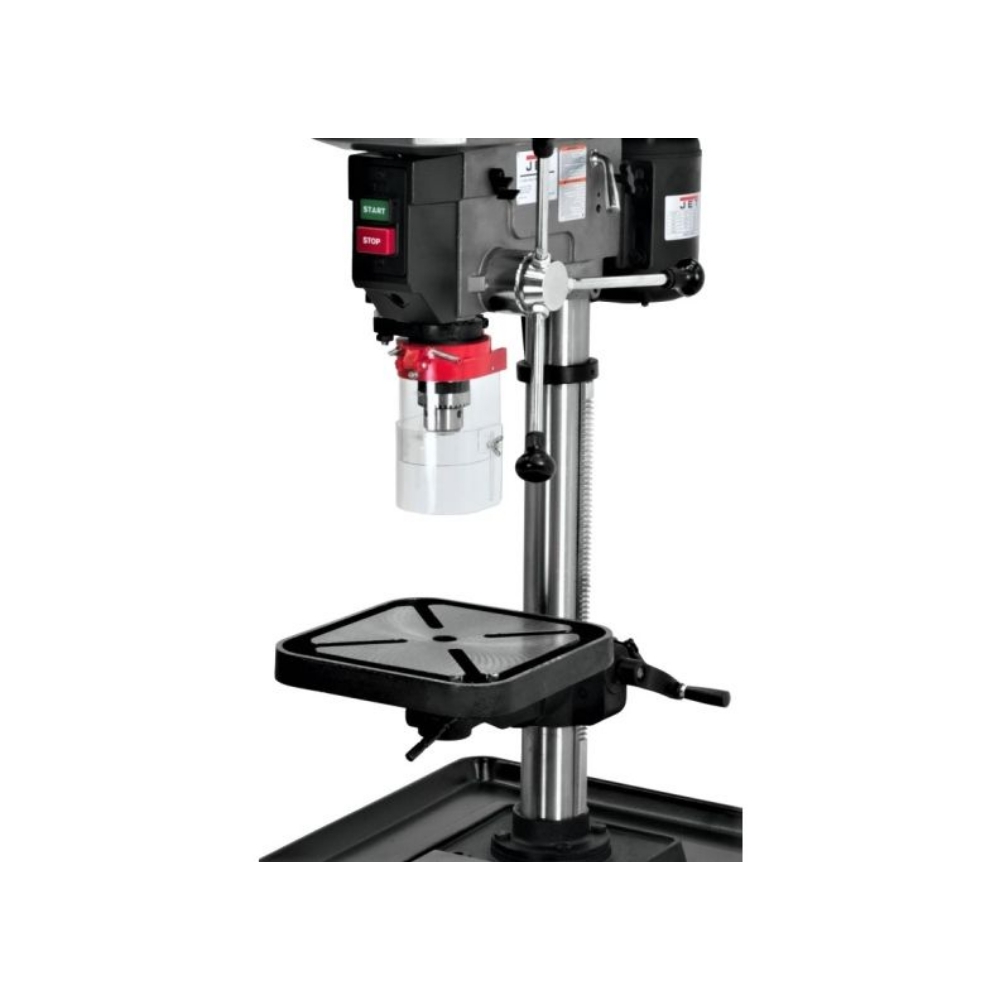

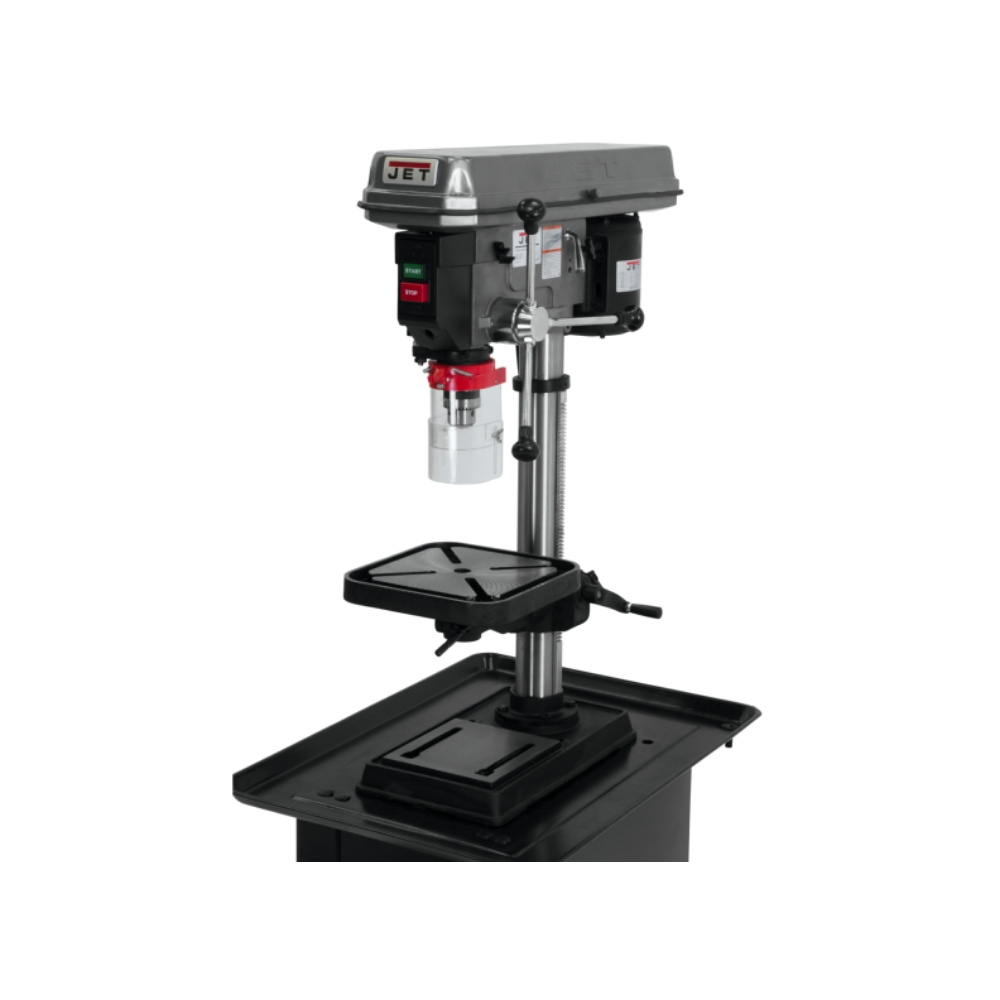

The JET 15" and 20" Drill Presses are known for their accuracy, stability, and versatility, offering a greater range of spindle speeds than other machines in their class. Backed by JET's industry-leading two-year warranty, these high-quality machines feature a 3-1/8" stroke for deep hole applications, a cast iron head, and a solid base for reliable drilling performance. The large ground steel column ensures maximum head and table support, while the large quill enhances accuracy. Additional features include a telescoping safety spindle guard and an enclosed spindle assembly supported by four permanently lubricated ball bearings, providing greater precision and reliability.
Specifications
- Stock Number: JT9-354401
- Base Dimensions (In.): 18 x 10-1/2
- Base Work Table (In.): 8 x 8
- Column Diameter (In.): 2-7/8
- Distance Column to Spindle (In.): 7-1/2
- Drilling Capacity Cast Iron (In.): 5/8
- Drilling Capacity Mild Steel (In.): 1/2
- Drills to Center of Circle (In.): 15
- Model Number: J-2530
- Motor (HP): 3/4 HP, 115/230V, 1Ph
- Number of Spindle Speeds: 16
- Overall Dimensions (L x W x H) (In.): 31 x 13 x 39-1/2
- Prop 65: Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM): 200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630
- Spindle Distance to Base (In.): 24
- Spindle Distance to Table (Max.) (In.): 15
- Spindle Taper (In. x TPI): MT-2
- Spindle Travel (In.): 3-3/8
- Style (Type): Belt Drive
- T-Slots Number and Size (In.): 3 - 5/8
- Table Size (L x W) (In.): 11-1/2 x 11-1/2
- Table Travel (In.): 15-1/2
- Warranty: 2 Year
- Weight (Lbs.): 157
- Work Table Weight Capacity (Lbs.): 44
- Gross Weight: 163.0
- Net weight: 157.0
- Brand: Jet Tools
