About this product

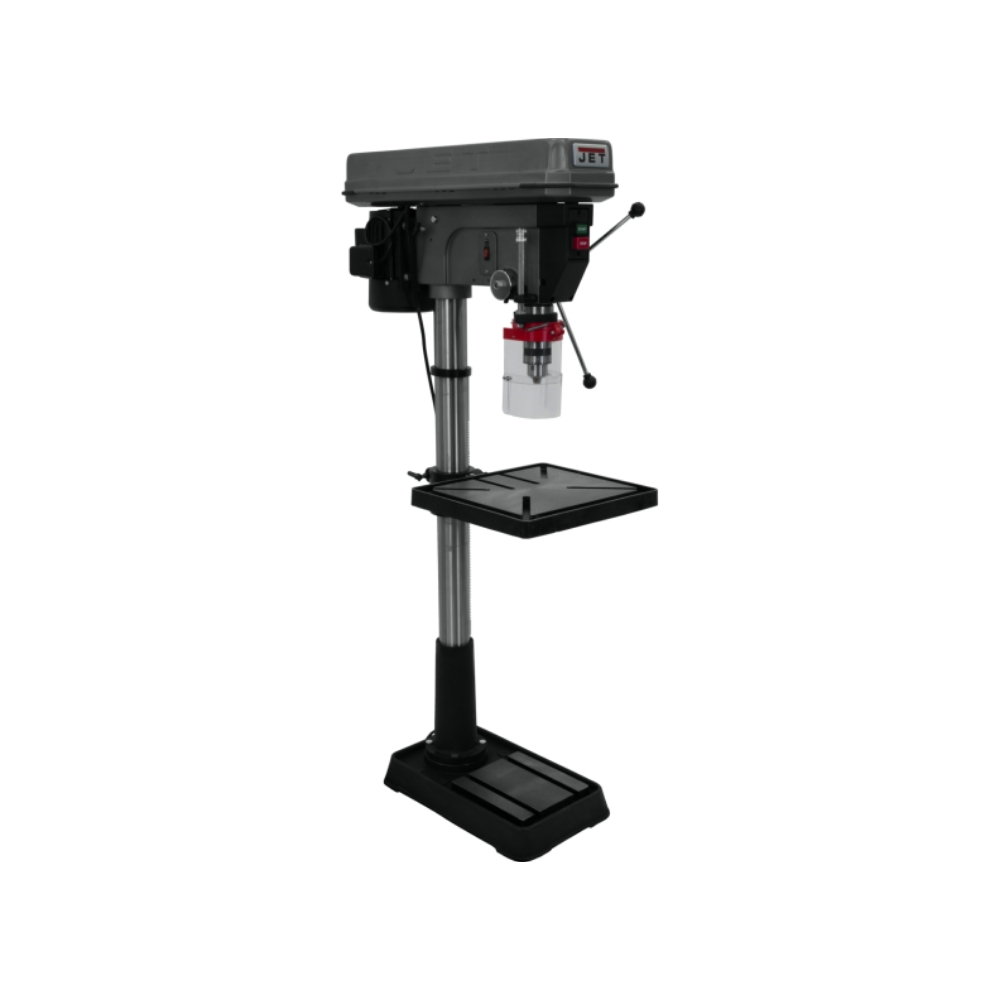

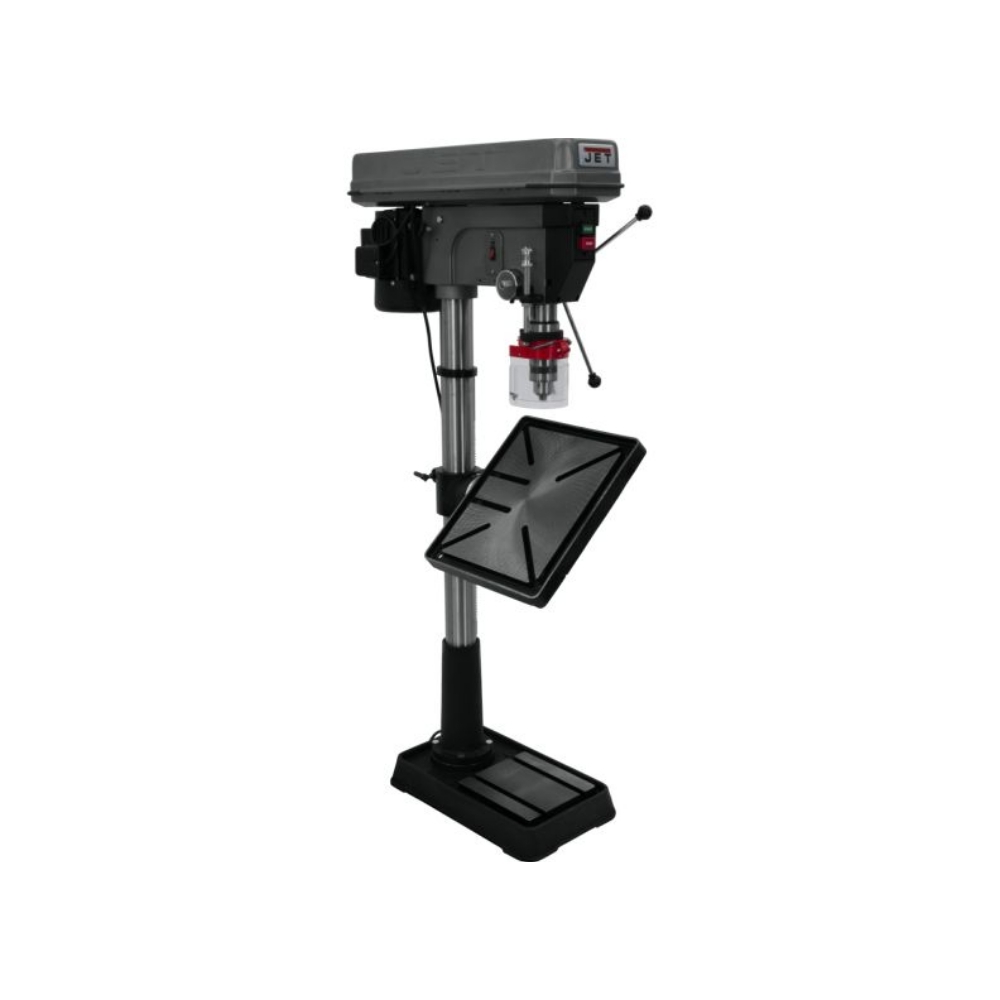

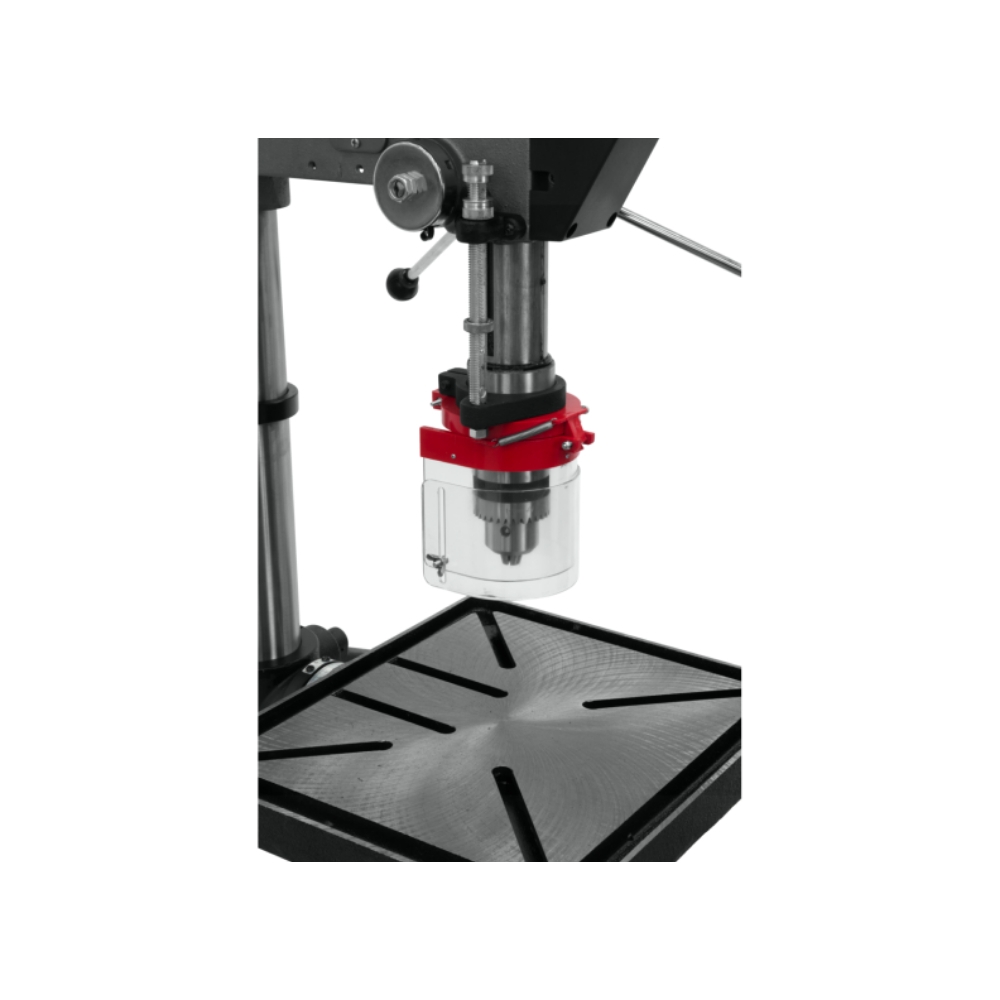

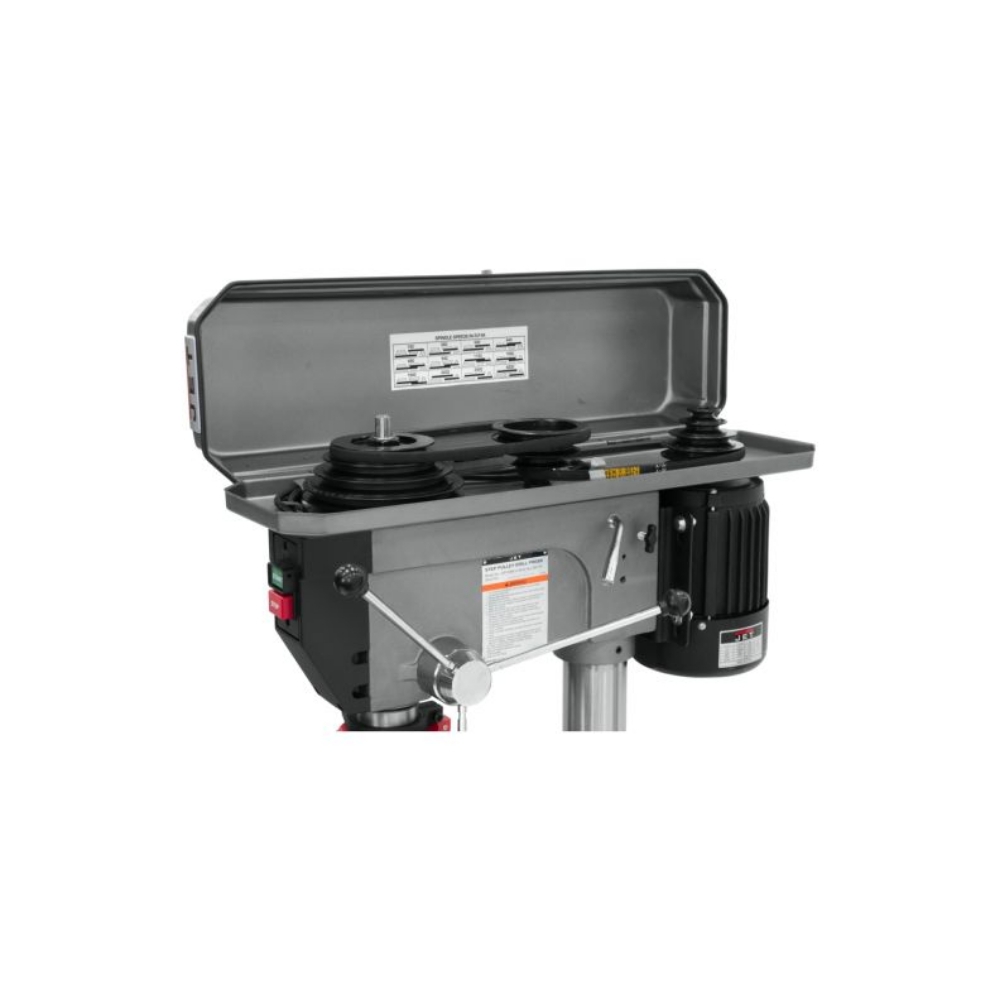

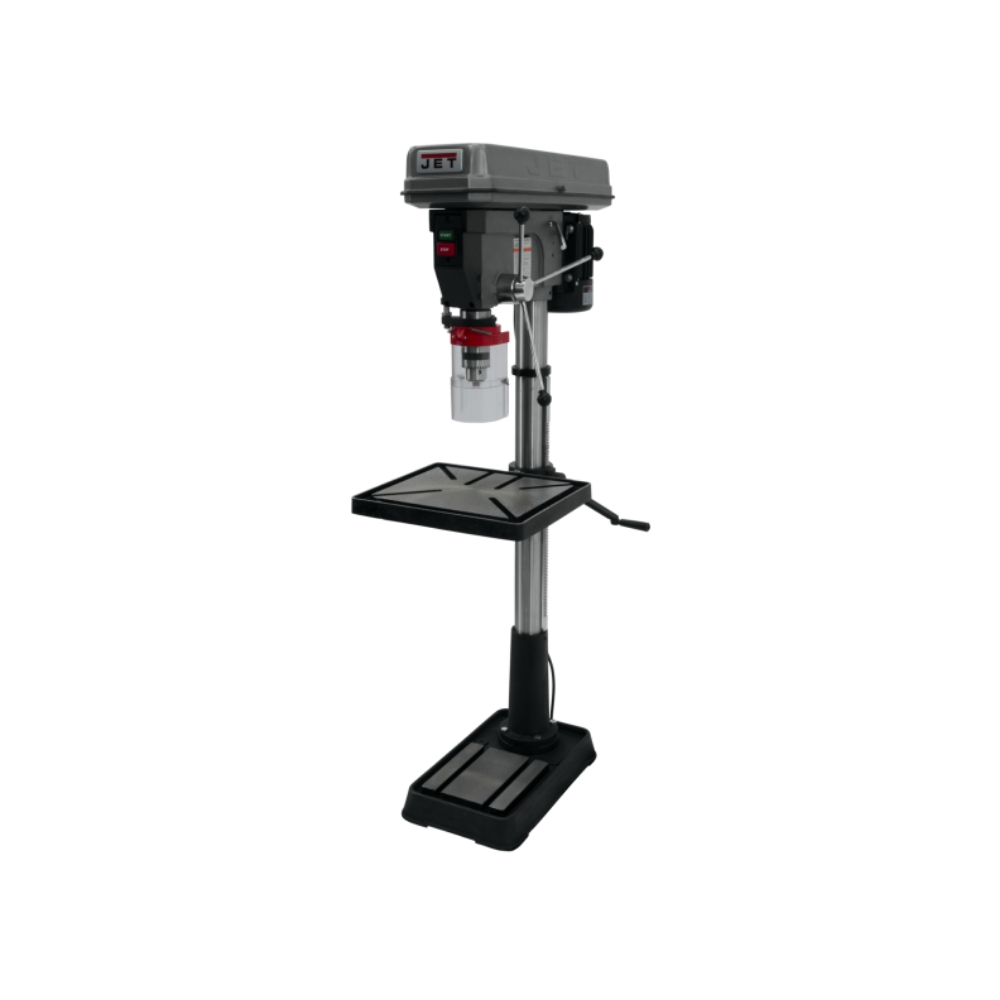

The JET 15" and 20" Drill Presses are known for their accuracy, stability, and versatility, offering a greater range of spindle speeds compared to other machines in this class. They feature a 1/2" diameter external depth stop with a three-nut locking mechanism for quick adjustment, an adjustable tension spindle return spring, a drill chuck and key, and a hinged metal belt and pulley cover. The on/off switch is conveniently located on the front of the drill press head, while the quick adjustment motor mount allows for rapid changing of spindle speeds. Additionally, a telescoping safety spindle guard enhances operator safety.
Specifications
- Stock Number: JT9-354170
- Base Dimensions (In.): 13-3/4 x 22-3/4
- Base Work Table (In.): 13 x 8-1/2
- Column Diameter (In.): 3-3/8
- Distance Column to Spindle (In.): 10
- Drilling Capacity Cast Iron (In.): 1
- Drilling Capacity Mild Steel (In.): 3/4
- Drills to Center of Circle (In.): 20
- Model Number: JDP-20MF
- Motor (HP): 1-1/2 HP, 115/230V, 1Ph
- Number of Spindle Speeds: 12
- Overall Dimensions (L x W x H) (In.): 33-1/2 x 18-1/2 x 67
- Prop 65: Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM): 150 - 4,200
- Spindle Distance to Base (In.): 46-3/4
- Spindle Distance to Table (Max.) (In.): 29-1/8
- Spindle Taper (In. x TPI): MT-3
- Spindle Travel (In.): 4-5/8
- Style (Type): Variable
- T-Slot Centers (In.): 3-1/2
- T-Slots Number and Size (In.): 6 and 1/2
- Table Size (L x W) (In.): 18-1/2 x 16
- Table Travel (In.): 21-1/2
- Warranty: 2 Year
- Weight (Lbs.): 282
- Work Table Weight Capacity (Lbs.): 80
- Gross Weight: 325.0
- Net weight: 282.0
- Brand: Jet Tools
