About this product

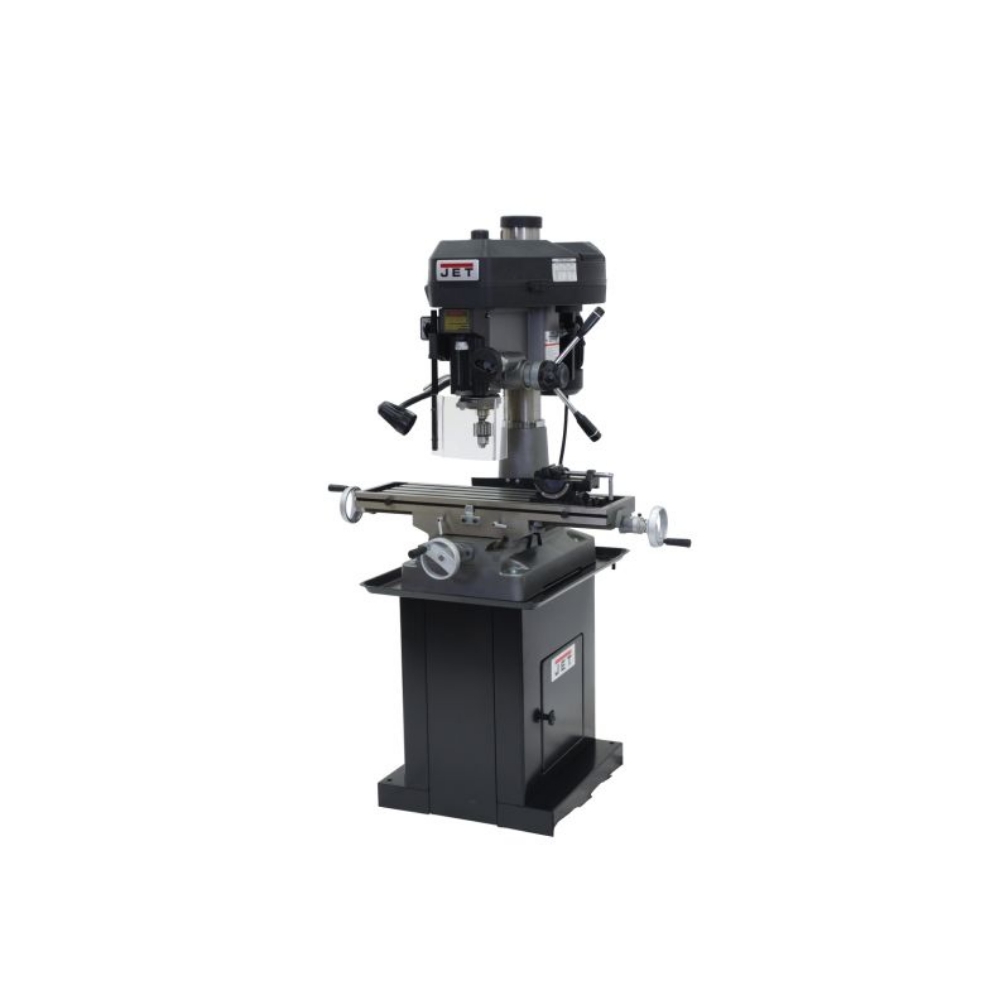

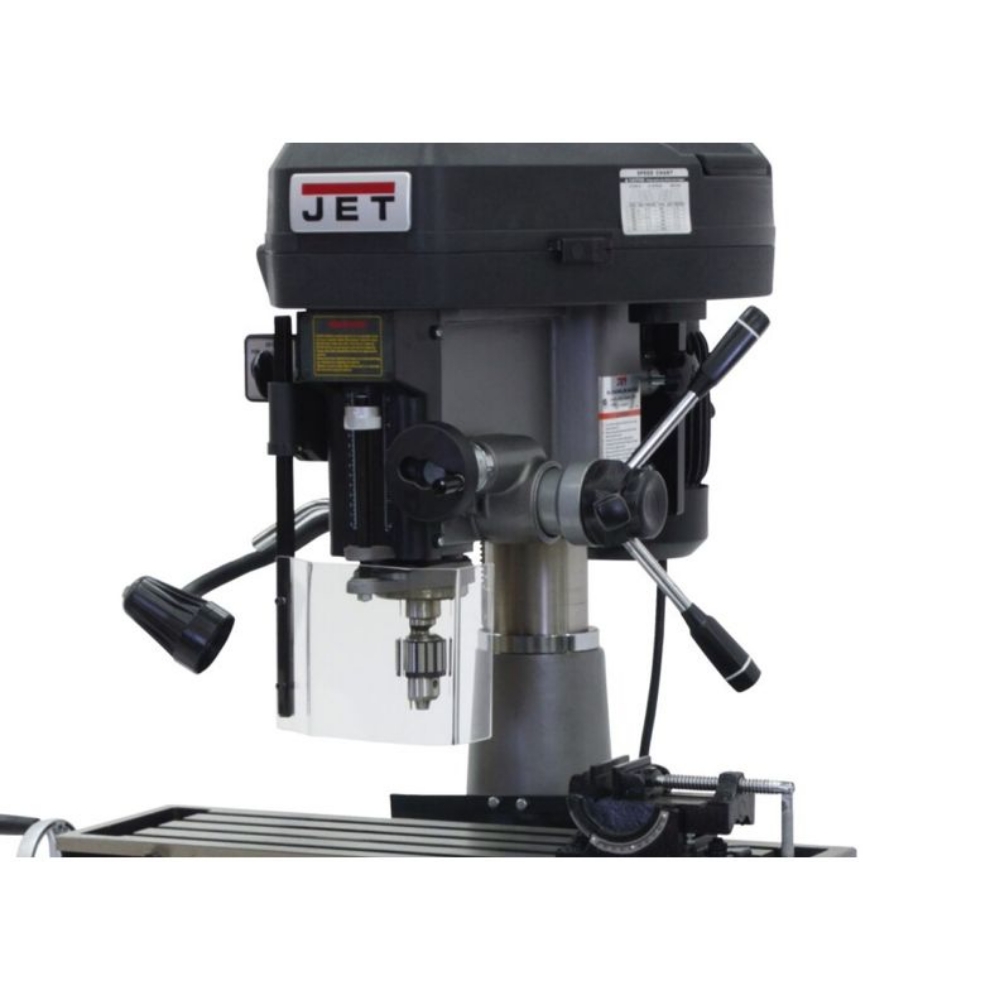

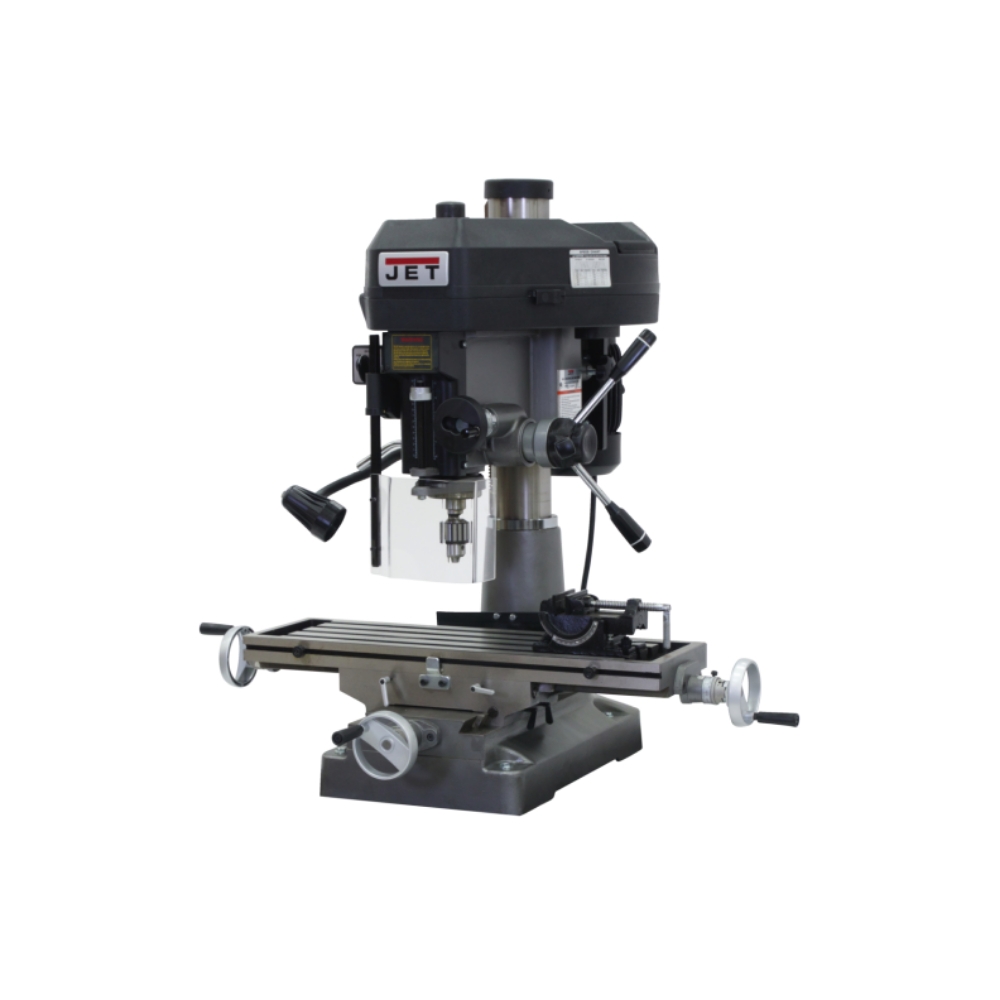

Mill drills offer a lighter alternative to milling machines, combining a belt-driven drill press with the dual coordinate abilities of a milling machine's table for enhanced flexibility and efficiency. The JMD Milling Drilling Machines feature a 1/2” drill chuck with a chuck arbor, a 360° head swivel, an adjustable carbide facemill, and a base taper for easier cleanup. Additional features include an easy-to-read internal depth gauge, a forward and reverse switch, and a one-piece cast iron column for added support. The mill drill stand (p/n 350045), shown in some images, is optional, while the positive quick-stop knob and UL listing ensure safety and convenience. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are applied.
Specifications
- Stock Number: JT9-350018
- Base Dimensions (In.): 15-3/4 x 23-3/4
- Column Diameter (In.): 4-1/2
- Face Mill Capacity (In.): 3
- Max Distance Spindle to Table (In.): 17-1/2
- Model Number: JMD-18
- Motor (HP): 2 HP, 115/230V, 1Ph
- Number of Spindle Speeds: 12
- Overall Dimensions (L x W x H) (In.): 47 x 40 x 51
- Prop 65: Cancer and Reproductive Harm
- Quill Diameter (In.): 3
- Range of Spindle Speeds (RPM): 150 - 3,000
- Spindle Taper (In. x TPI): R-8
- Spindle Travel (In.): 5
- Swing (In.): 15-7/8
- T-Slot Centers (In.): 1-13/16
- T-Slots Number and Size (In.): 4 and 5/8
- Table Longitudinal Travel (In.): 20-1/2
- Table Size (L x W) (In.): 9-1/2 x 32-1/4
- Warranty: 2 Year
- Weight (Lbs.): 660
- Work Table Weight Capacity (Lbs.): 400
- Gross Weight: 682.0
- Net weight: 595.0
- Brand: Jet Tools
