About this product
Makita, a pioneer in brushless motor technology and battery innovation, combines both in the 36V (18V X2) LXT® Brushless Rear Handle 7-1/4” Circular Saw (XSR01PT). It's powered by two 18V LXT® Lithium-Ion batteries for maximum performance, and has an electronically-controlled BL™ Brushless motor that matches torque and RPM to the application. Makita 18V X2 means freedom from the cord, even for demanding applications like cutting sheet and dimensional lumber that traditionally called for a corded saw. Best of all, users can remain in one battery platform, using the same fast-charging 18V batteries with the XSR01PT as they use across the expansive Makita 18V LXT® cordless tool series. The XSR01PT has a long list of features for efficient cutting without the cord. Users of leading corded saws will appreciate the blade-left rear-handle design. The electronically-controlled brushless motor delivers a full 5,100 RPM for efficient cutting. In internal testing, the XSR01PT made up to 558 cross-cuts per charge in 2x4 SPF lumber using two fully-charged 5.0Ah batteries. Added features include a large 2-9/16” cutting capacity at 90 degrees that will cut 3X lumber in a single pass, and an electric brake for maximum productivity. The saw has a die-cast magnesium base and blade guard with die-cast aluminum blade cover and motor housing, which combines durability with less weight (only 12.4 lbs. with batteries). It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.
Features
Powered by two LXT® batteries; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord
Makita-built electronically controlled brushless motor delivers 5,100 RPM for maximum performance and 50% longer run time per charge
The brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life
Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
X2 LXT® technology delivers up to 558 crosscuts per charge in 2x4 SPF lumber and up to 291 crosscuts per charge in 2x10 SPF lumber using the two 5.0Ah batteries
Large 2-9/16” cutting capacity at 90°; cuts 3X material in a single pass
Electric brake for maximum productivity

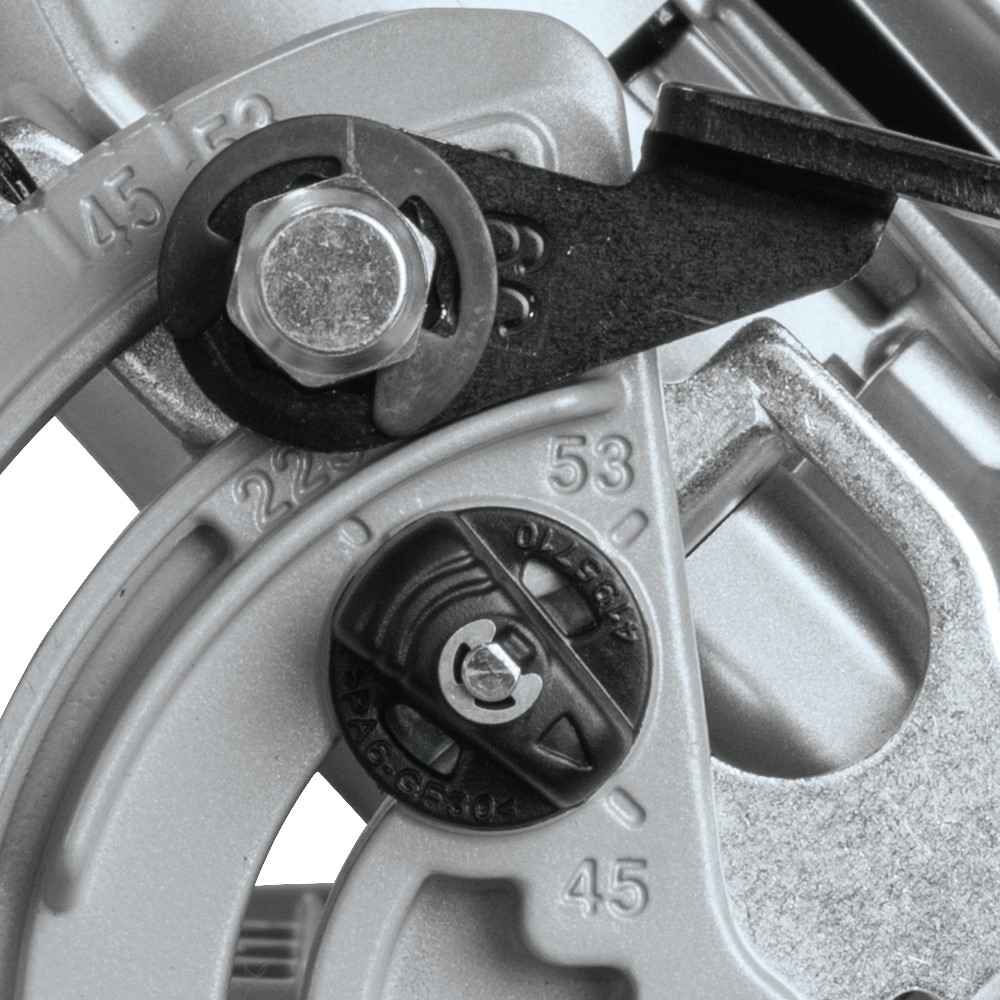

0°- 53° bevel capacity with positive stops at 22.5°, 45°, and 53°
Die-cast magnesium base and blade guard along with a die-cast aluminum blade cover and motor housing provide a lightweight, durable design
Compact and ergonomic design at only 17-1/2" long
Weighs only 12.4 lbs. with batteries for reduced operator fatigue
Ideal for framers, formers, builders, roofers, and more
Retractable, extra-wide tool hook secures the tool when not in use
Built-in tether notch (tether sold separately)
Rubberized soft grip handle provides increased comfort on the job
Extreme Protection Technology (XPT™) is engineered for improved dust and water resistance for operation in harsh conditions

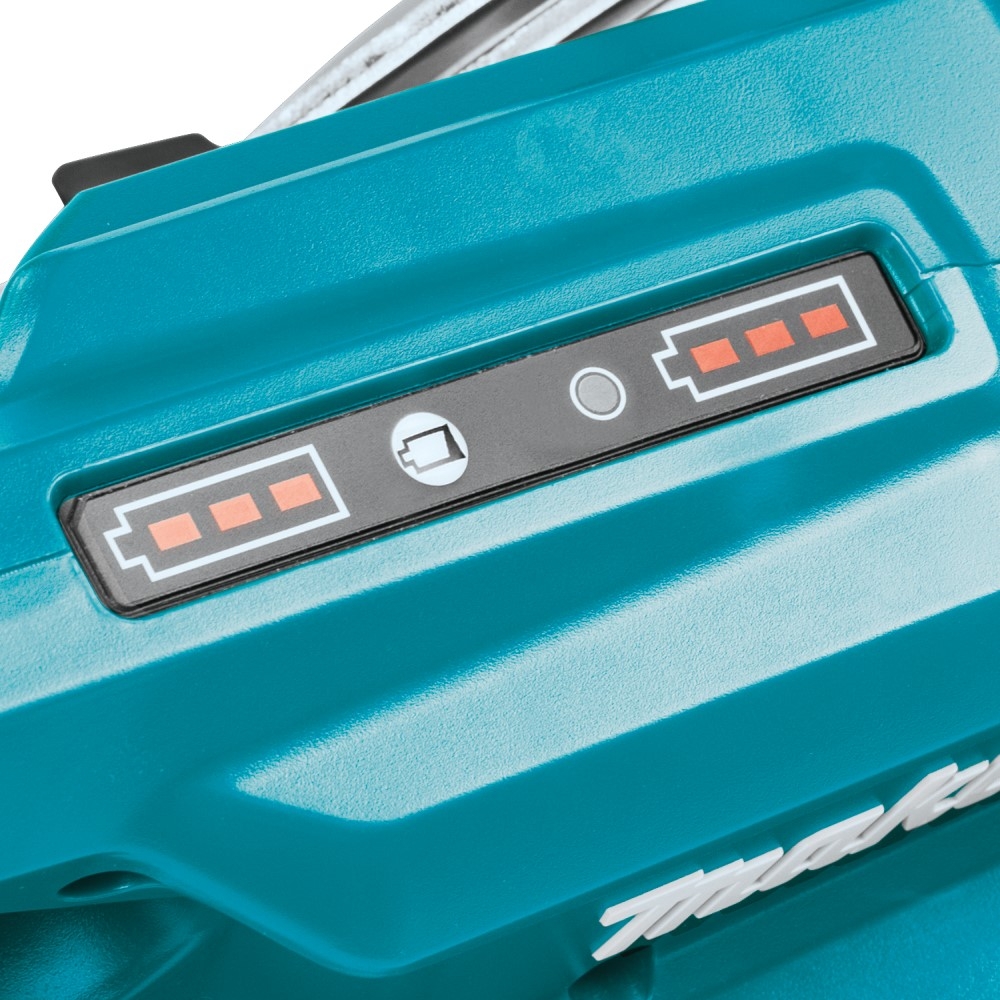

3-stage L.E.D. gauges on the tool indicate battery charge levels
Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating

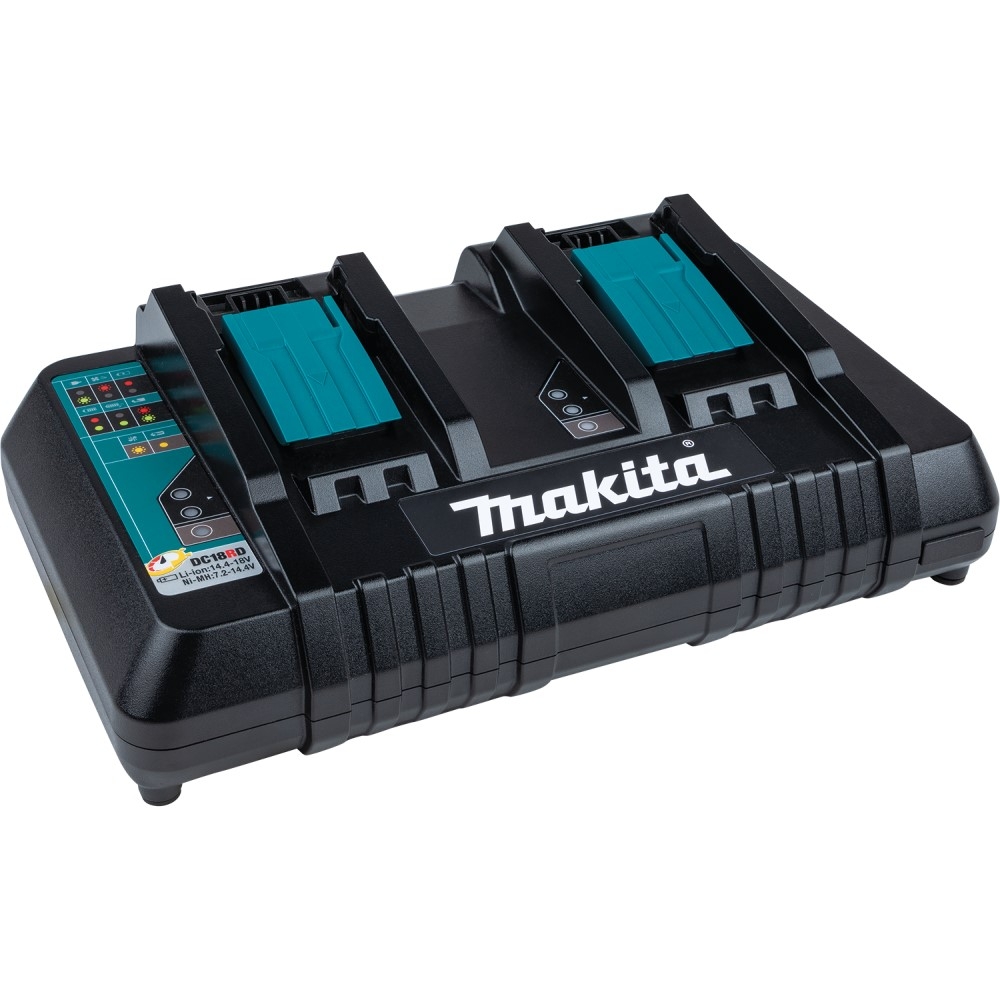

Dual Port Rapid Optimum Charger charges two batteries at the same time
The Dual Port Rapid Optimum Charger communicates with the batteries built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
For more efficient charging, the Dual Port Rapid Optimum Charger has built-in fans to cool the batteries faster
Makita technology delivers category-leading charge time so the batteries spend more time working and less time sitting on the charger
X2 LXT® technology delivers up to 558 crosscuts per charge in 2x4 SPF lumber using the two 5.0Ah batteries

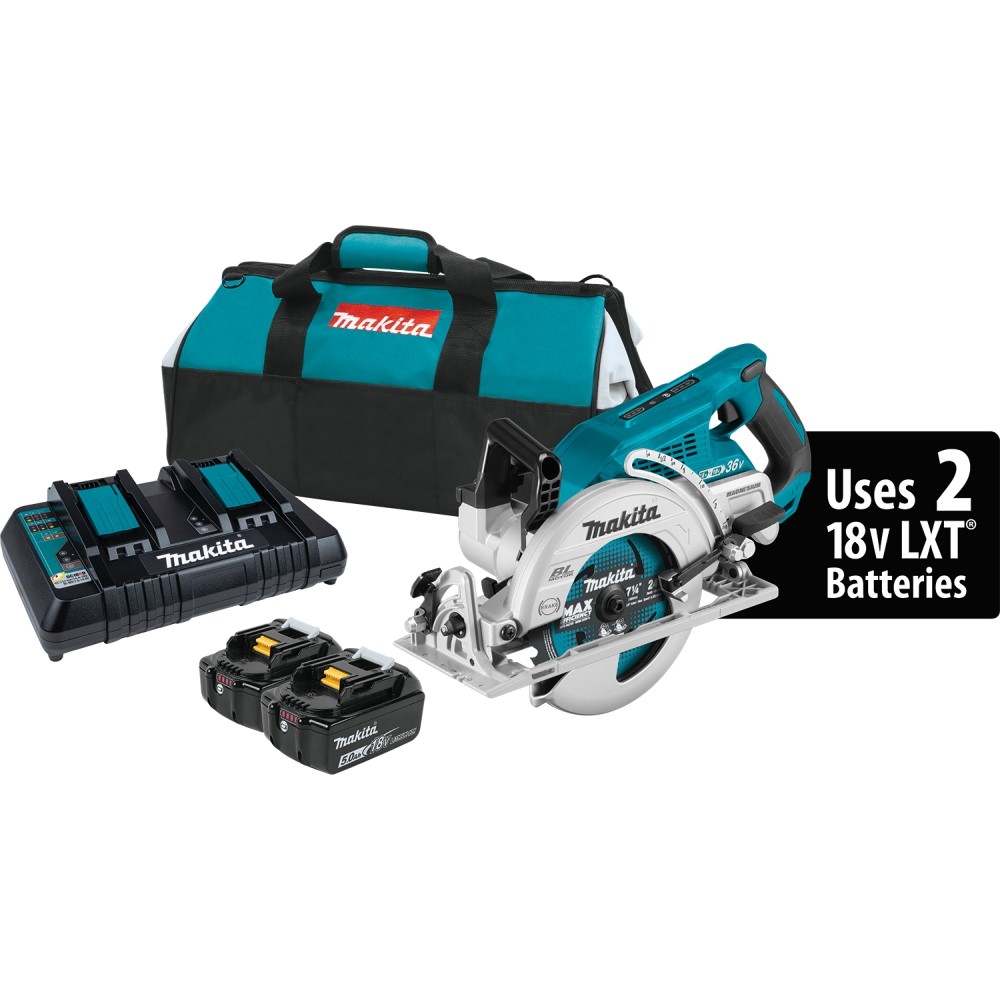

Includes

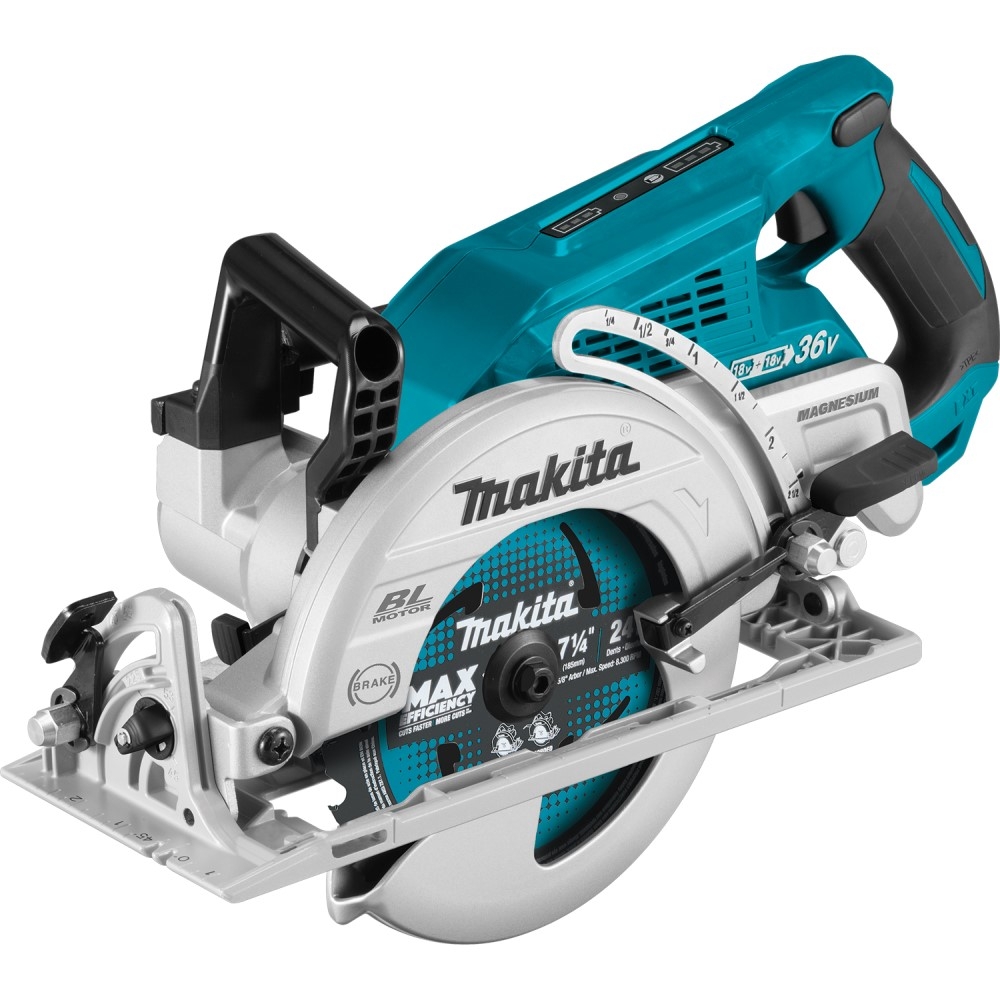

36V (18V X2) LXT® Brushless Rear Handle 7-1/4” Circular Saw (XSR01Z)
2 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
7-1/4" 24T C.T. Circular Saw Blade (B-61656)
Hex Wrench (783204-6)
Tool Bag (831271-6)
Specifications
- Blade Diameter: 7-1/4"
- Arbor: 5/8"
- Max. Cutting Capacity (at 90°): 2-9/16"
- Max. Cutting Capacity (at 53°): 1-1/2"
- Max. Cutting Capacity (at 45°): 1-3/4"
- No Load Speed: 5,100 RPM
- Battery: 2X 18V LXT® Lithium-Ion
- Overall Length: 17-1/2"
- Net Weight (with battery): 12.4 lbs.
- Shipping Weight: 24.2 lbs.
- Power Type: Cordless
- Handle Type (Circular Saws): Rear Handle
- Form Factor (LXT): X2
- Motor Type: Brushless
- Country of Origin: China
