Description

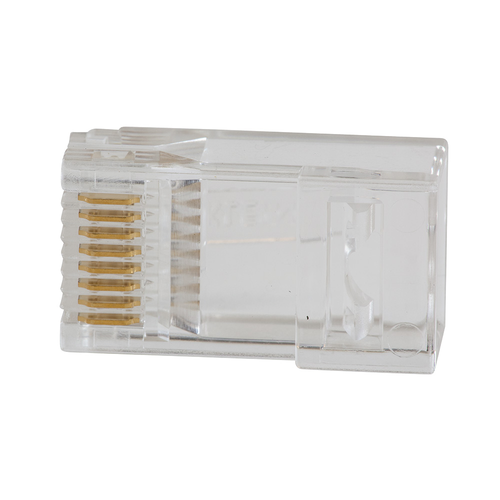

Exclusive Klein-designed Pass-Thru™ CAT5e modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials.
Features
Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
50 µ-inch minimum gold plating on all contact surfaces
Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant

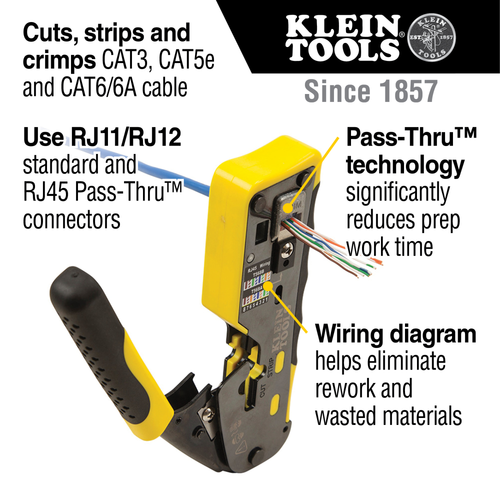

For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
200-Pack
8 position, 8 contact Pass Through style data plug for solid or stranded cable
Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)
Pass-Thru Technology
Warnings
Do NOT use on energized circuits or cabling systems
Application: Voice and Data
Connector Type: RJ45
Material: PVC Plastic; Gold Plated Contacts
Solid Conductor Wire: Yes
Stranded Conductor Wire: Yes
Package Quantity: 200
Position & Contacts: 8P 8C
Overall Height: 0.453" (1.2 cm)
Overall Width: 0.094" (0.2 cm)
Cable Type: CAT5e
Connector Color: Clear
Overall Length: 0.875" (2.2 cm)
Height: 0.0920 in
Width: 0.4500 in
Depth: 0.8800 in
Weight: 0.6200 lbs
Features
Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
50 µ-inch minimum gold plating on all contact surfaces
Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
200-Pack
8 position, 8 contact Pass Through style data plug for solid or stranded cable
Max diameter for CAT5E Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)
Pass-Thru Technology
Warnings
Do NOT use on energized circuits or cabling systems
Specifications
Type: ModularApplication: Voice and Data
Connector Type: RJ45
Material: PVC Plastic; Gold Plated Contacts
Solid Conductor Wire: Yes
Stranded Conductor Wire: Yes
Package Quantity: 200
Position & Contacts: 8P 8C
Overall Height: 0.453" (1.2 cm)
Overall Width: 0.094" (0.2 cm)
Cable Type: CAT5e
Connector Color: Clear
Overall Length: 0.875" (2.2 cm)
Height: 0.0920 in
Width: 0.4500 in
Depth: 0.8800 in
Weight: 0.6200 lbs
