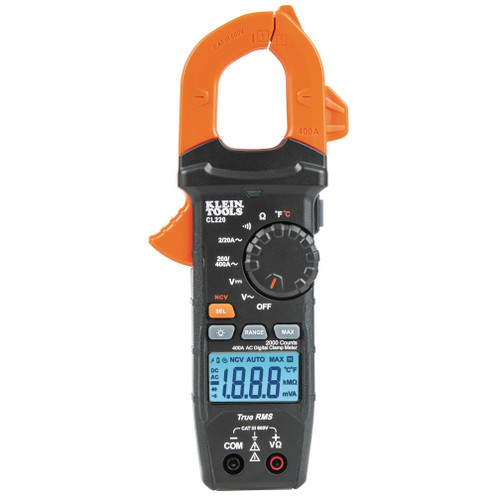

Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Features a test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation. Additionally, a backlit LCD makes viewing in low light easy. Automatically powers off after 10 minutes to conserve battery life. Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries

Specifications

Type: Auto Ranging TRMS Clamp with Temperature

Application: Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple

Special Features: Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature

Material: ABS/Electronics

Batteries: 3 x AAA

Auto-Power Off: Yes

Jaw Size: 1.6'' (4.1 cm)

Drop Protection: 6.6' (2 m)

Display: 2000 Count Backlit LCD

Functions: TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature

Voltage: 600 V AC/DC

Current: 400 A AC

Ohms (Resistance): 20 MΩ

AC Voltage: 600 V

DC Voltage: 600 V

DC Polarity Indicator: Yes

Temperature Range: -40° - 1832°F (-40° - 1000°C)

Standard: CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified

Included: Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries

Overall Length: 8.45'' (21.5 cm)

Overall Height: 1.5'' (3.8 cm)

Overall Width: 3.5'' (8.9 cm)

Weight: 11 oz (314 g)

UPC: 092644692857
