Description

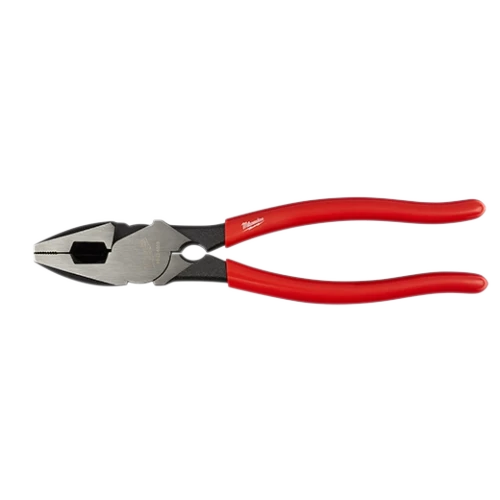

High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio. Ergonomically optimized handle shape for firm contact to the hand and fatigue reducing operation. Effective cross-hatched knurled gripping zone in jaws for strong gripping and pulling. Serrated gripping zone below the joint for powerful leverage. Cutting edges for soft and hard wire, nails, ACSR and piano wire. Cutting edge hardness approx. 64 HRC. With fish tape puller in the joint gap; with universal crimping point below the joint. Vanadium steel, forged, multi stage oil-hardened.
Features
- High transmission ratio for easy cutting
- Cutting edge hardness (approx. 64 HRC)
- With fish tape puller in the joint gap; with universal crimping point below the joint
- Cutting edges for soft and hard wire, nails and piano wire
- Effective cross-hatched knurled gripping zone in the jaws for strong gripping and pulling
- Ergonomically optimized handle shape for firm contact to the hand and fatigue reducing operation
- High leverage design requires 50% less effort compared to conventional combination pliers due to an optimized transmission ratio
- Vanadium steel, forged, multi stage oil-hardened
- Serrated gripping zone below the joint for powerful leverage
Specifications
- 1000 Volt Insulated: No
- Material Type: Vanadium steel, forged, multi stage oil-hardened
- Gripping Surface: Cross-hatched, Knurled
- Crimping Positions: 1
- Cutting Edge HRC: Approx. 61 HRC
- Cutting Capacity - Medium Hard Wire (Nail): 3/16"
- Joint Type: Inserted rivet
- Cutting Capacity - Hard Wire (Steel Wire): 1/8"
- Surface Finish: Polished
- Handle Type: Plastic Coated
Dimensions
- Weight: 1.0 LBS
- Width: 2.25 Inches
- Depth: 9.5 Inches
- Height: 0.75 Inches
