Description

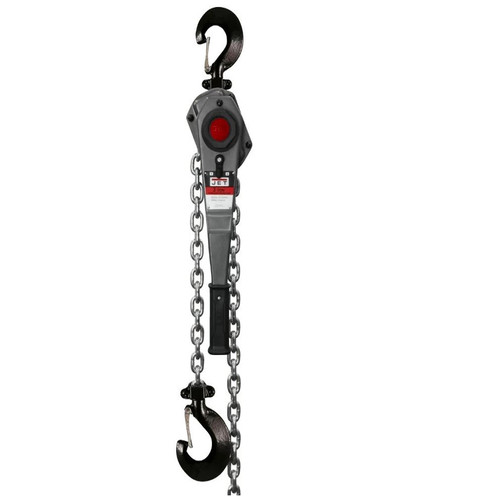

JET JLH Series Lever Hoists incorporate safety, durability, and heavy duty construction for operation in severe industrial environments. Safety comes standard with features such as overload protection, which prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. The JET JLH Series is available in 1/4 ton to 9 ton capacities, with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). Whether its inverted, vertical, horizontal, or any other load angle, the JET JLH lever hoist is the solution for your heavy-duty industrial needs.
Lift (Ft.): 20
Overload Protection: Yes
Ship Yard Hooks: Yes
Headroom (In.): 15-5/9
Handle Length (In.): 16-5/16
Lever Pull Force (LBF): 84
Lift per Turn (In.): 3/4
Number of Falls: 1
Load Chain Dimensions (Mm.): 10 x 28
Load Capacity (Metric Tons): 3.2
Hook Throat Opening (In.): 1-1/2
Overall Width (In.): 7-1/2
Weight (Lbs.): 53
Width: 7.52
Weight: 69.00
Length: 22.56
Height: 6.26
Specifications
Load Capacity (Tons): 3Lift (Ft.): 20
Overload Protection: Yes
Ship Yard Hooks: Yes
Headroom (In.): 15-5/9
Handle Length (In.): 16-5/16
Lever Pull Force (LBF): 84
Lift per Turn (In.): 3/4
Number of Falls: 1
Load Chain Dimensions (Mm.): 10 x 28
Load Capacity (Metric Tons): 3.2
Hook Throat Opening (In.): 1-1/2
Overall Width (In.): 7-1/2
Weight (Lbs.): 53
Width: 7.52
Weight: 69.00
Length: 22.56
Height: 6.26
