Description

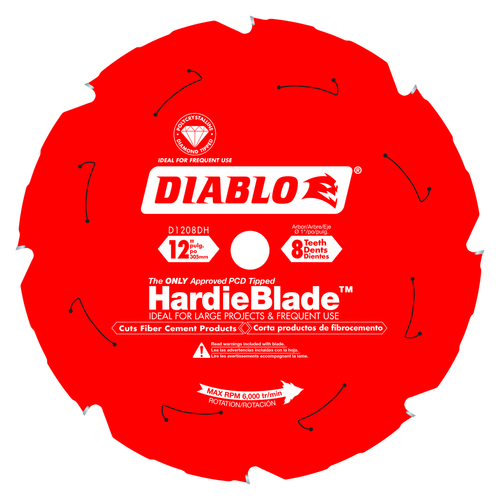

Diablo HardieBlade™ is the only approved PCD (PolyCrystalline Diamond) tipped fiber cement blade recommended by James Hardie Building Products. Diablo's co-branded Diablo blade generates up to 50% less respirable dust, while delivering the longest life in all fiber cement materials. The PCD triple chip design offers up to 60-times longer cutting life than standard carbide blades. The laser cut thin kerf design gives fast and precise cuts with less dust and waste. The anti-vibration design stabilizes the blade and reduces noise while cutting and Non-Stick Perma-Shield coating to reduce heat.
Applications
- Fiber Cement Cutting
Features
- The PCD triple chip design offers up to 60 times longer cutting life than standard carbide blades
- Note: Dust generation does not necessarily correlate directly to exposure risk.
- The only approved James Hardie polycrystalline diamond (PCD) tipped fiber cement saw blade
- Perfect for full time use in heavy duty applications like cutting multiple pieces of fiber cement board.
- Feature a unique, spark-eroded Triple Chip grind for long life – up to 60 times the life in fiber cement of conventional carbide blades
Cuts
- Fiber Cement
Specifications
- Hook Angle: 10°
- Diameter: 7-1/4"
- Kerf: .071"
- Teeth: 4 TCG (PCD)
- Arbor: 5/8"
- Max RPM: 10000
- Plate: .051"
Dimensions
- Weight: 1.0 LBS
- Width: 7.5 Inches
- Depth: 7.5 Inches
- Height: 0.25 Inches
